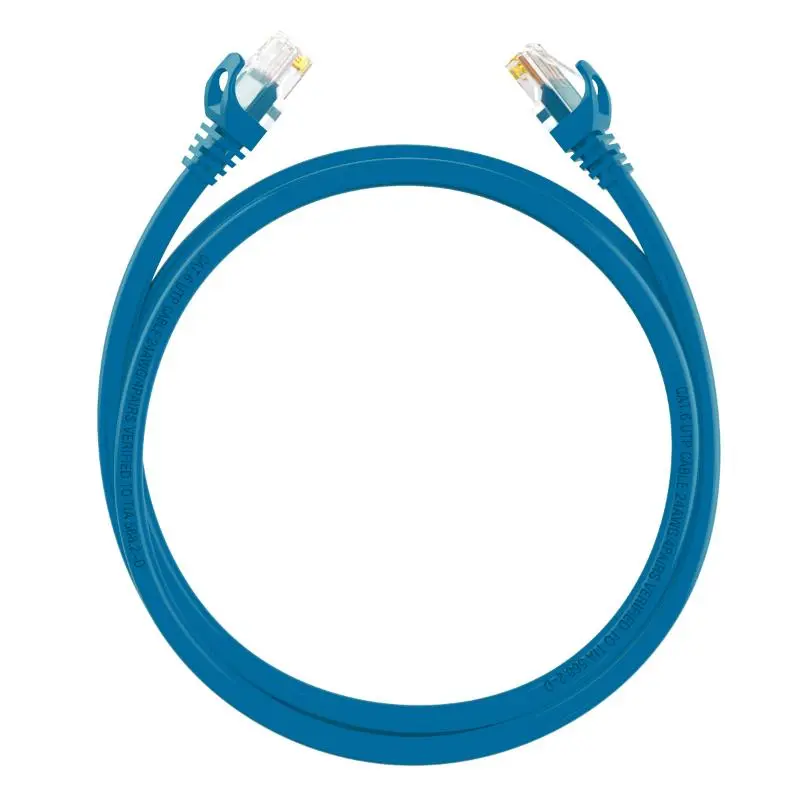

DS-1NP6UEC0 Blue 1m
14 تم البيع خلال آخر 24 ساعة
CAT6，U/UTP，24AWG，CU
Tags |
Overview
DS-1NP6UEC0 Blue 1m — CAT6，U/UTP，24AWG，CU
Key Features
- Stable electrical performance, compliant with TIA-568.2-D,ISO/IEC 11801.
- Bare Copper conductor with less resistance, and better electrical properties and transmission performance.
- Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
- Gold plated plug, less resistance, less Insertion loss.
- Excellent performance in the Fluke 100-meter channel test.
- Compliant with RoHS 2.0.
- Suitable for 10BASE-T, 100BASE-TX Fast Ethernet, and 1000BASE-T /1000BASE-TX (Gigabit Ethernet).
Specifications
Patch cord/General
| Category | Cat 6 |
| length | 0.5,1,2,3,5,10m |
| Operating Voltage | 57V |
Patch cord/Conductor
| Conductor Material | Bare Copper (99.95%) |
| Conductor Diameter | 7*0.2mm 24AWG |
Patch cord/Insulation
| Insulation Material | HDPE |
Patch cord/Sheath
| Sheath Material | PVC |
| Sheath Thickness | 0.50 ± 0.05mm |
| Sheath Diameter | 5.8±0.20 mm |
| Sheath Color | Orange/Gray |
Patch cord/Plug
| Plug Material | PC UL94V-0 |
| Gold Plating | 30u inch |
Patch cord/Electrical Characteristic
| Impedance | 100±15 Ω |
| DC Resistance | ≤ 9.4 Ω/100 m |
