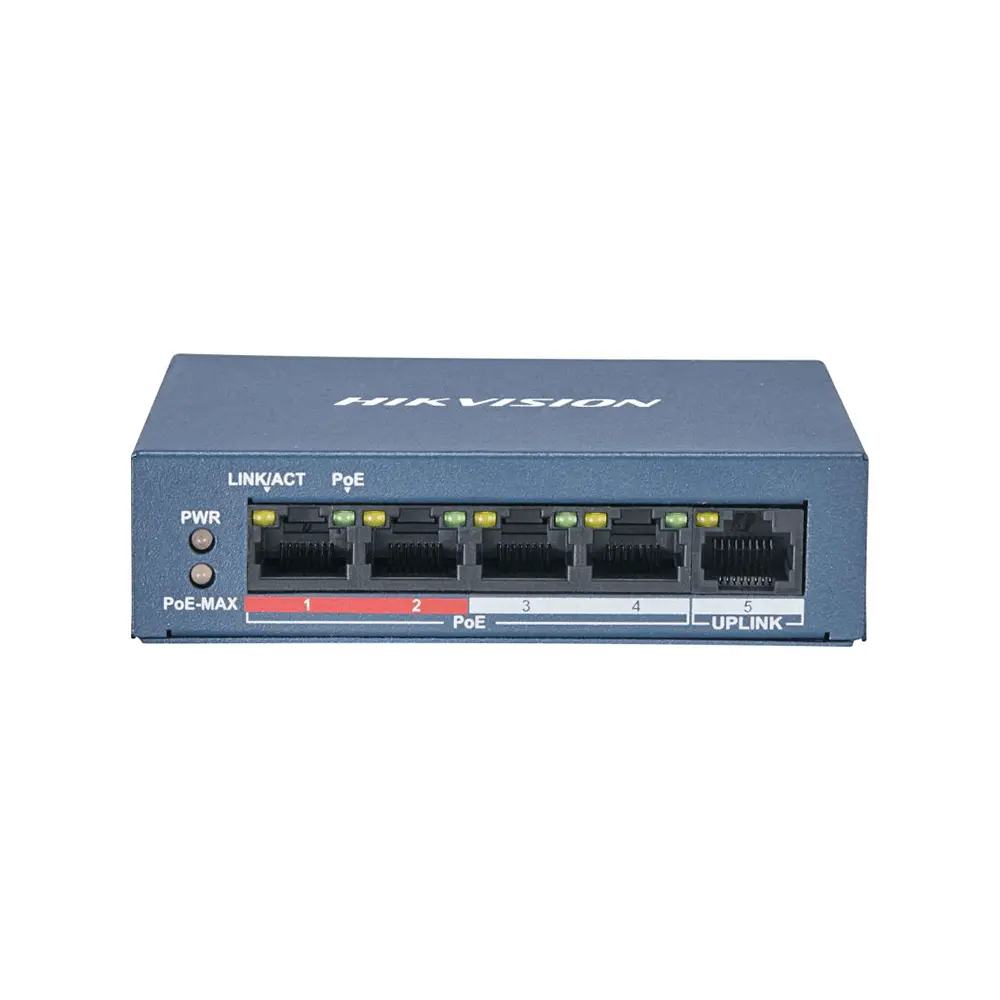

DS-3E0105P-E/M
Hikvision – Unmanaged – Switches • Official ND in Egypt
4 Port Fast Ethernet Unmanaged POE Switch
- Ports: 4 x 10/100 Mbps PoE port,1× 10/100 Mbps RJ45 port
- PoE power over Ports 1 to 4, compliant with IEEE 802.3af / IEEE 802.3at
- Total PoE budget 35 W, up to 30 W on a single port
- Long-range mode transmits up to 300 m on Ports 1 to 4 — no extra repeater needed
- Switching capacity 1 Gbps with a packet forwarding rate of 0.74 Mpps
- Surge protection rated 6 KV on the network ports
- MAC address table 2 K and 768 Kbits packet buffer
- Housing: metal
- Mounting: desk or wall — 105 mm × 27.6 mm × 83.1 mm
- Power input 48 VDC, 0.8 A, maximum consumption 38 W
Tags |
Brand
Hikvision
PoE Budget
30W
Port Count
4 PoE + 1 uplink
Switching Capacity
1.0 Gbps
Speed
10/100 Mbps
MAC Address Table
2K
Max Power Consumption
38W
Dimensions
105 × 27.6 × 83.1 mm
Operating Temperature
0°C to 40°C
Ideal For
InfrastructureCamera PowerNetwork Connectivity
| Brand | Hikvision |
| Ports | 4 PoE + 1 uplink |
| PoE Budget | 30W |
| Speed | 10/100 Mbps |
| Switching Capacity | 1.0 Gbps |
| MAC Address Table | 2K |
| Max Power Consumption | 38W |
| Dimensions | 105 × 27.6 × 83.1 mm |
| Operating Temperature | 0°C to 40°C |
