DS-1CK6U90N
Hikvision – PDS Accessories – Network • Official ND in Egypt

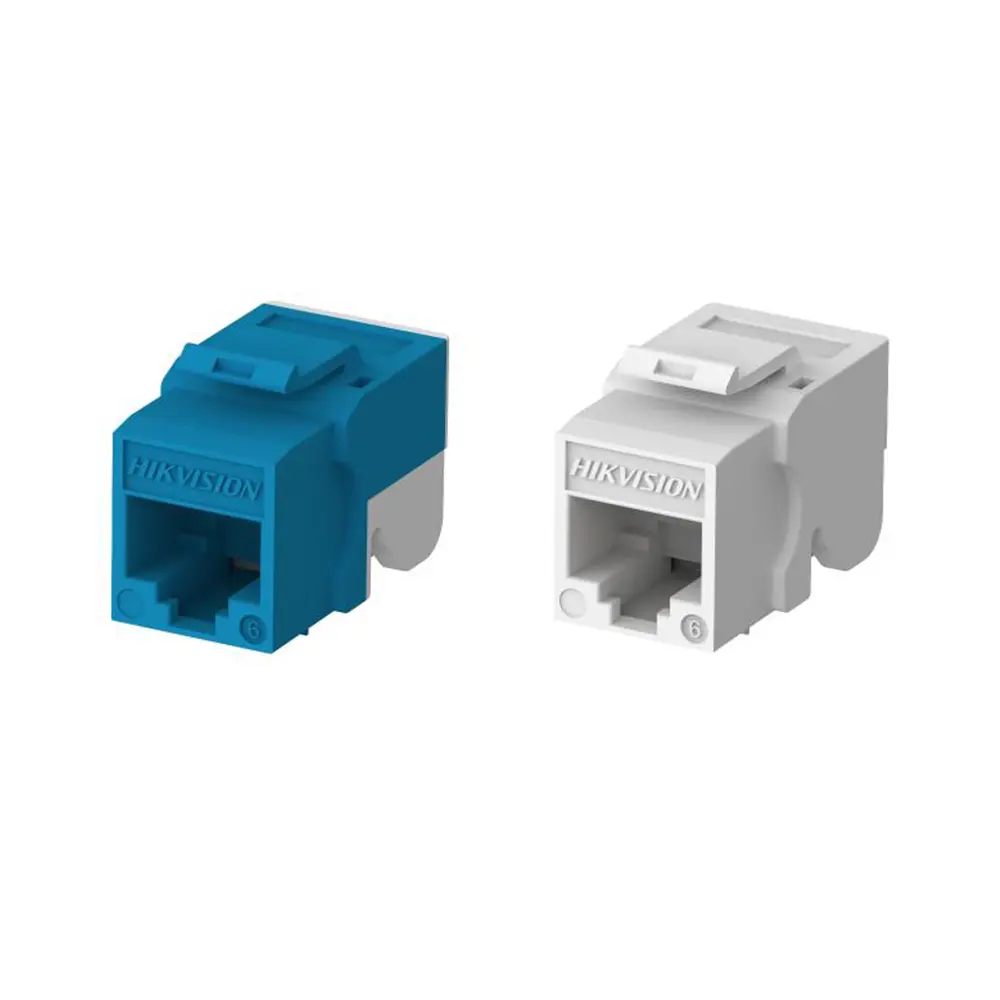

Cat6 Unsheilded 90° Toolless Keystone Jack
- Cat 6 UTP keystone jack — tool-less, 90° cable exit
- Meets ISO/IEC 11801 Class E and ANSI/TIA-568.2-D Category 6 — rated to 250 MHz
- 50 µin gold-plated phosphor bronze contacts — rated for ≥ 750 mating cycles
- Tool-less termination — no punch-down tool needed on site
- Universal label supports both TIA 568A and TIA 568B wiring
- PC housing rated UL 94 V-0 — contact resistance ≤ 20 mΩ, insulation ≥ 500 MΩ
- Current rating 1.5 A at 20 °C — dielectric strength 1,000 Vac
- Operating range −10 °C to 60 °C at 10–90% RH
- Fits standard face plates and blank patch panels
- 20.05 × 16.80 × 32.55 mm
Brand
Hikvision
Ideal For
Surveillance SystemsSecurityInfrastructure
| Brand | Hikvision |
| Material | PC housing · Phosphor bronze, 50 µin gold |
| Dimensions | 20.05 × 16.80 × 32.55 mm |
| Operating Temperature | -10 °C to 60 °C |
| number of ports | 1 |
| Cable Category | Cat 6 |
| Shielding | U/UTP (Unshielded) |
| Termination | Tool-less · 90° exit |
| Product Type | Keystone Jack |
