DS-1LN6UU/CCA
Hikvision – Network Cables – Network • Official ND in Egypt

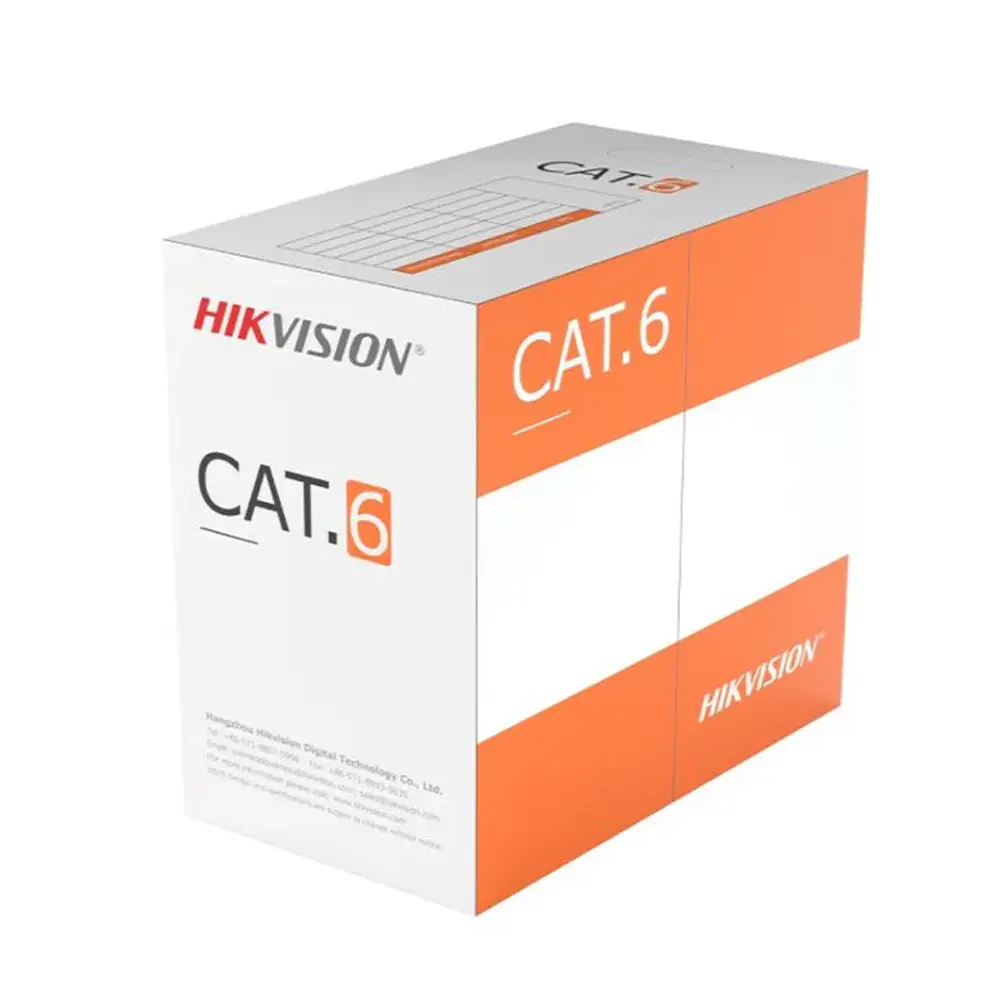

DS-1LN6UU/CCA - Network Cable
- Cat 6 U/UTP network cable — 305 m box
- CCA conductor — copper-clad aluminium, copper content ≥ 22% — 0.57 mm, 23 AWG
- DC resistance ≤ 12 Ω per 100 m — higher than solid copper, so plan shorter PoE runs
- Passes the Fluke 90 m channel test
- Compliant with ANSI/TIA-568.2-D and RoHS 2.0
- Grey PVC jacket rated CPR Eca — HDPE insulation, 6.4 mm outer diameter
- Rip-cord and pair separator for faster termination
- Ambient range −10 °C to 60 °C — impedance 100 ± 15 Ω, delay skew ≤ 45 ns per 100 m
- 10.5 kg box — operating voltage 57 V
Tags |
Brand
Hikvision
Ideal For
Professional InstallationSecurity System AccessoriesEasy Connection
| Brand | Hikvision |
| Operating Temperature | -10 °C to 60 °C |
| Cable Category | Cat 6 |
| Shielding | U/UTP |
| Conductor Material | CCA (copper ≥ 22%) |
| Conductor Diameter | 0.57 mm (23 AWG) |
| Sheath Material | PVC |
| Usage Scenario | Indoor |
| Length | 305 m |
| Product Type | Network Cable |
