DS-1LN6UZC0
Hikvision – Network Cables – Network • Official ND in Egypt

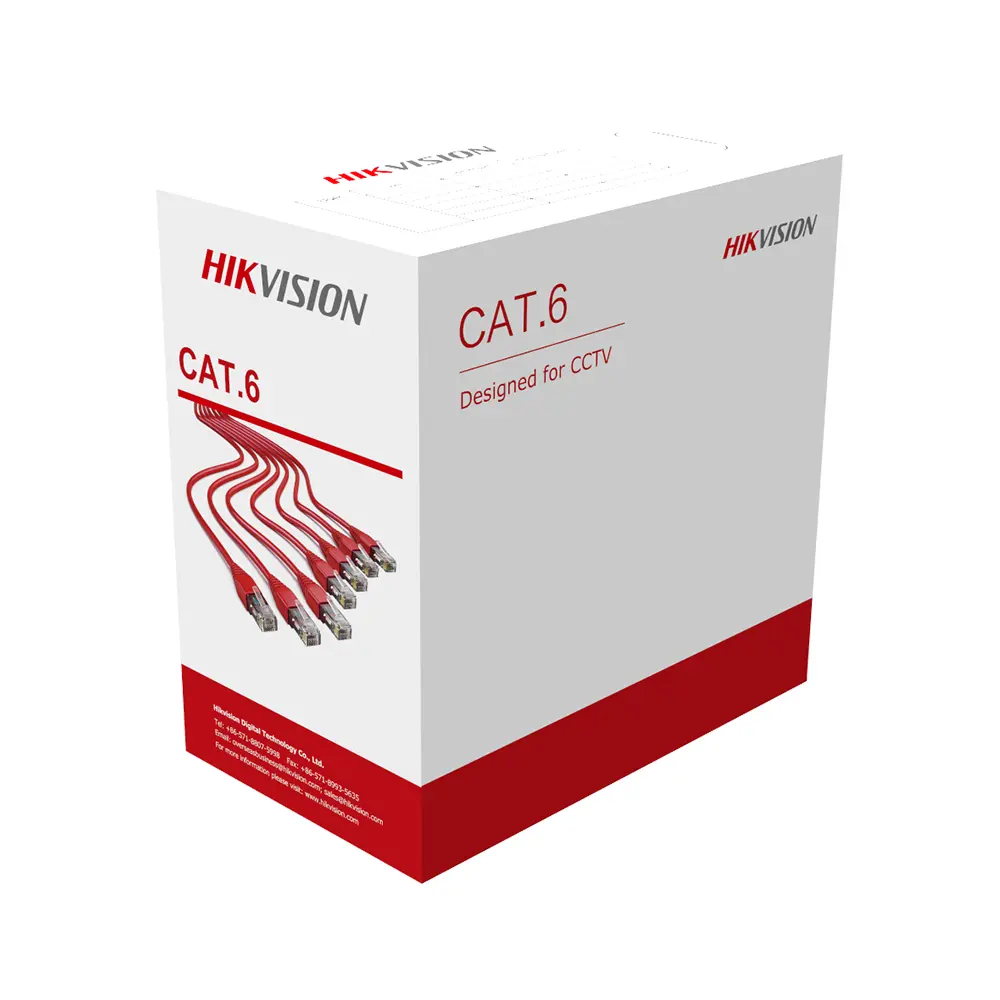

CAT6 U/UTP Network Cable (Solid Copper, 0.5mm)
- Cat 6 U/UTP network cable — 305 m box
- Solid bare copper conductor, 99.95% pure — 0.50 mm, 24 AWG
- DC resistance ≤ 9.38 Ω per 100 m — less voltage drop on long PoE camera runs
- Passes the Fluke 100 m channel test under a continuous 57 V / 1 A PoE load
- Passes the Fluke 90 m permanent link test at 50 °C continuous operation
- Compliant with ANSI/TIA-568.2-D, IEC 61156 and ISO/IEC 11801
- PVC jacket — HDPE insulation, 5.30 mm outer diameter
- Rip-cord and pair separator for faster termination
- Ambient range −20 °C to 70 °C — impedance 100 ± 15 Ω, delay skew ≤ 45 ns per 100 m
- RoHS 2.0 compliant — available in grey and orange
Tags |
Brand
Hikvision
Ideal For
Surveillance SystemsSecurityInfrastructure
| Brand | Hikvision |
| Cable Category | Cat 6 |
| Shielding | U/UTP |
| Conductor Material | Solid Copper |
| Conductor Diameter | 0.5 mm |
| Sheath Material | PVC |
| Usage Scenario | Indoor |
| Length | 305 m |
| Product Type | Network Cable |
