DS-3E0106HP-E
Hikvision – Unmanaged – Switches • Official ND in Egypt

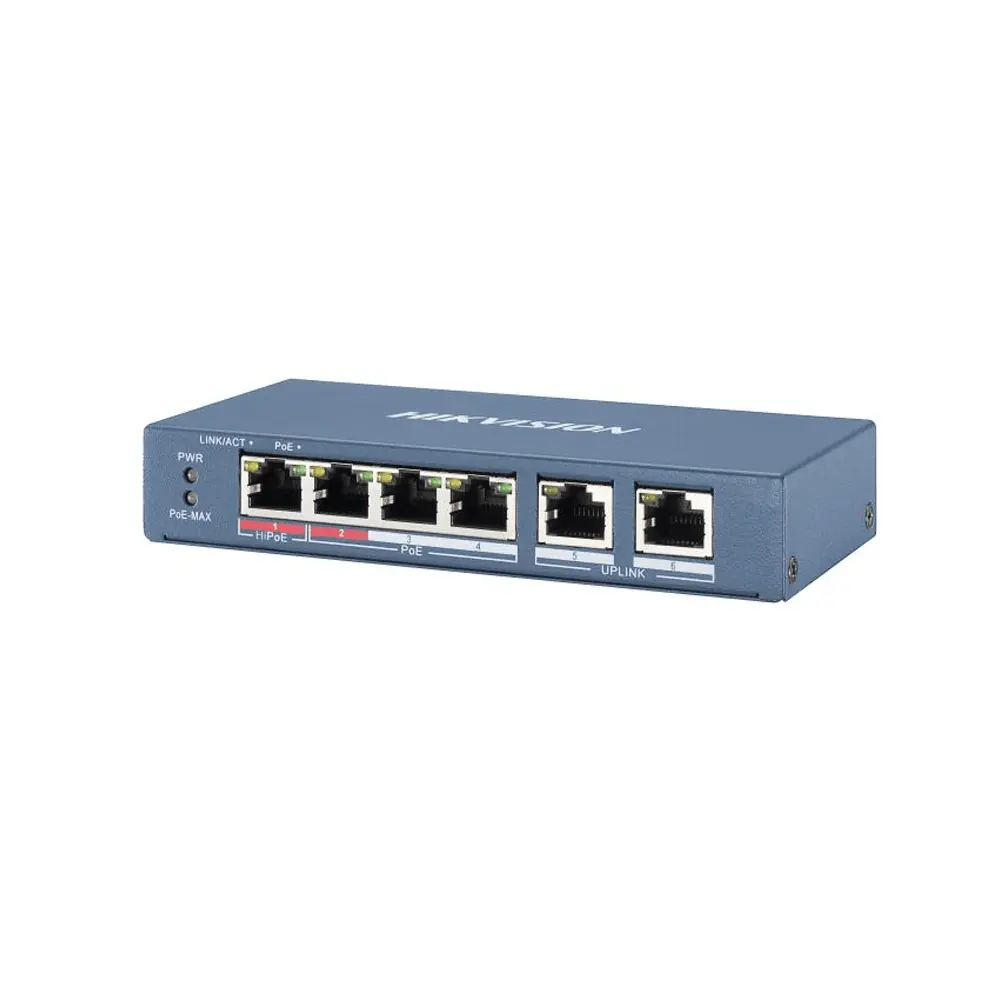

4 Port Fast Ethernet Unmanaged POE Switch
- Ports: 4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
- PoE power over Ports 2 to 4, compliant with IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
- Total PoE budget 60 W, up to Port 1: 60 W Ports 2 to 4: 30 W on a single port
- Long-range mode transmits up to 300 m on Ports 1 to 4 — no extra repeater needed
- Switching capacity 1.20 Gbps with a packet forwarding rate of 0.89 Mpps
- Surge protection rated 6 KV on the network ports
- MAC address table 2 K and 768 Kbits packet buffer
- Housing: metal, fan-less (silent operation)
- Mounting: desk or wall — 145 mm × 25.6 mm × 68.45 mm
- Power input 48 VDC, 1.35 A, maximum consumption 65 W
Tags |
Brand
Hikvision
PoE Budget
120W
Port Count
1 Hi-PoE + 3 PoE + 2 uplink
Switching Capacity
1.2 Gbps
Speed
10/100 Mbps
MAC Address Table
2K
Max Power Consumption
65W
Dimensions
145 × 25.6 × 68.45 mm
Operating Temperature
0°C to 40°C
Ideal For
InfrastructureCamera PowerNetwork Connectivity
| Brand | Hikvision |
| Ports | 1 Hi-PoE + 3 PoE + 2 uplink |
| PoE Budget | 60 W total (Port 1: 60 W · Ports 2-4: 30 W) |
| Speed | 10/100 Mbps |
| Switching Capacity | 1.2 Gbps |
| MAC Address Table | 2K |
| Max Power Consumption | 65W |
| Dimensions | 145 × 25.6 × 68.45 mm |
| Operating Temperature | -10 °C to 55 °C |
