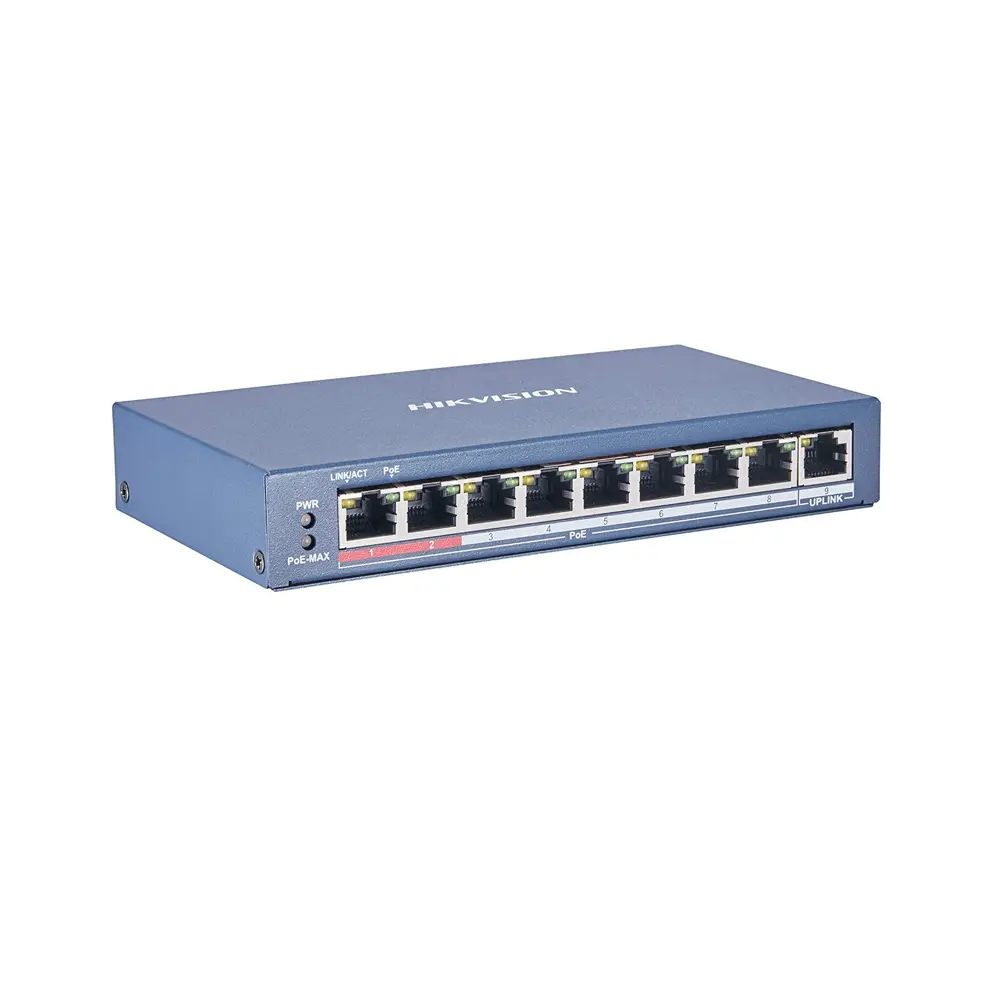

DS-3E0109P-E/M
Hikvision – Unmanaged – Switches • Official ND in Egypt
8 Port Fast Ethernet Unmanaged POE Switch
- Ports: 8 x 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
- PoE power over Ports 1 to 8, compliant with IEEE 802.3af / IEEE 802.3at
- Total PoE budget 80 W, up to 30 W on a single port
- Long-range mode transmits up to 300 m on Ports 1 to 8 — no extra repeater needed
- Switching capacity 1.8 Gbps with a packet forwarding rate of 1.34 Mpps
- Surge protection rated 6 kV on the network ports
- MAC address table 2 K and 1 Mbits packet buffer
- Housing: metal
- Mounting: desk or wall — 170 mm × 27.6 mm × 93.1 mm
- Power input 54VDC, 1.6A, maximum consumption 86 W
Tags |
Brand
Hikvision
PoE Budget
65W
Port Count
8 PoE + 1 uplink
Switching Capacity
1.8 Gbps
Speed
10/100 Mbps
MAC Address Table
2K
Max Power Consumption
65W
Dimensions
170 × 27.6 × 93.1 mm
Operating Temperature
0°C to 40°C
Ideal For
InfrastructureCamera PowerNetwork Connectivity
| Brand | Hikvision |
| Ports | 8 PoE + 1 uplink |
| PoE Budget | 60 W total · 30 W/port |
| Speed | 10/100 Mbps |
| Switching Capacity | 1.8 Gbps |
| MAC Address Table | 2K |
| Max Power Consumption | 65W |
| Dimensions | 170 × 27.6 × 93.1 mm |
| Operating Temperature | 0°C to 40°C |
