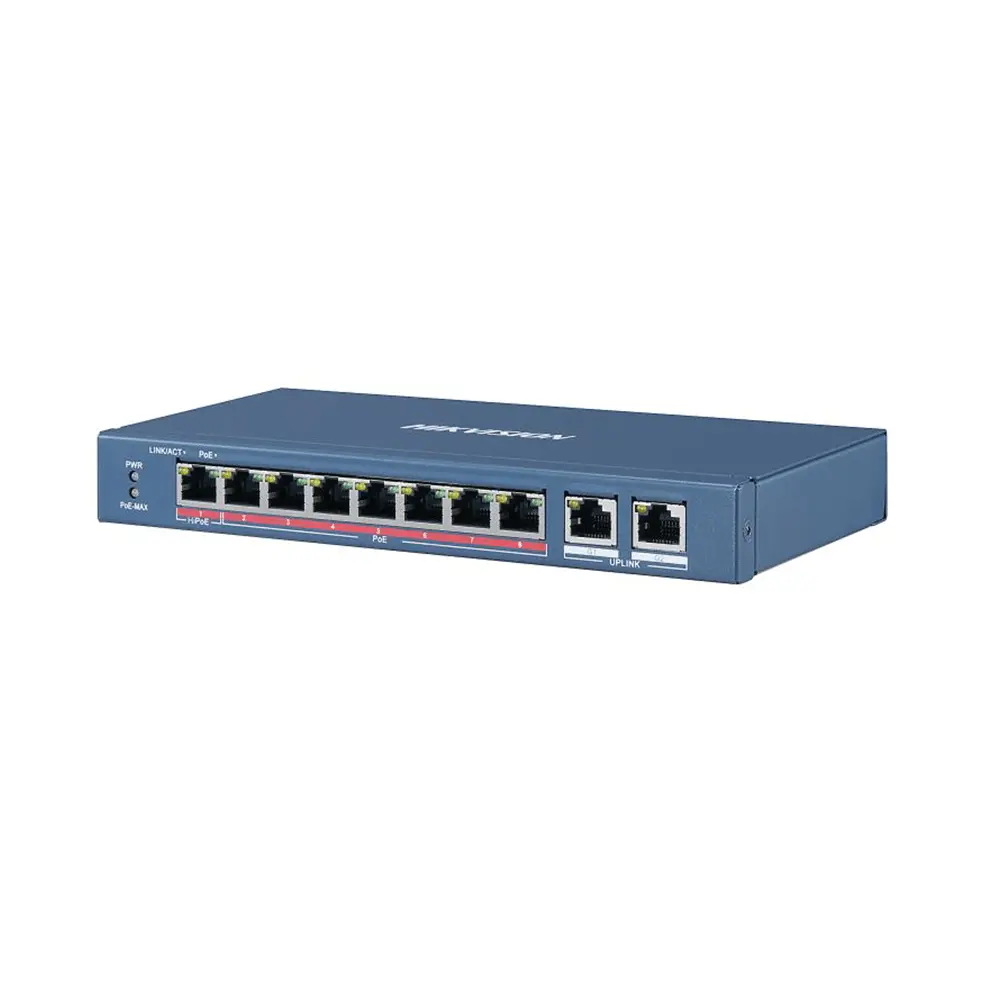

DS-3E0310HP-E
Hikvision – Unmanaged – Switches • Official ND in Egypt
8 Port Fast Ethernet Unmanaged POE Switch
- Ports: 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
- PoE power over Ports 2 to 8, compliant with IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
- Total PoE budget 110 W, up to Port 1: 90 W Ports 2 to 8: 30 W on a single port
- Long-range mode transmits up to 300 m on Ports 1 to 8 — no extra repeater needed
- Switching capacity 5.60 Gbps with a packet forwarding rate of 4.17 Mpps
- Surge protection rated 6 KV on the network ports
- MAC address table 8 K and 4 Mbits packet buffer
- Housing: metal, fan-less (silent operation)
- Mounting: desk or wall — 217.6 mm × 27.8 mm × 103.55 mm
- Power input 48 VDC, 2.5 A, maximum consumption 120 W
Tags |
Brand
Hikvision
PoE Budget
120W
Port Count
8 PoE + 2 Gigabit uplink
Switching Capacity
5.6 Gbps
Speed
10/100 Mbps
MAC Address Table
2K
Max Power Consumption
120W
Dimensions
217.6 × 27.8 × 103.55 mm
Operating Temperature
0°C to 40°C
Ideal For
InfrastructureCamera PowerNetwork Connectivity
| Brand | Hikvision |
| Ports | 1 Hi-PoE + 7 PoE (10/100) + 2 Gigabit uplink |
| PoE Budget | 110 W total (Port 1: 90 W · Ports 2-8: 30 W) |
| Speed | 10/100 Mbps |
| Switching Capacity | 5.6 Gbps |
| MAC Address Table | 8 K |
| Max Power Consumption | 120W |
| Dimensions | 217.6 × 27.8 × 103.55 mm |
| Operating Temperature | 0°C to 40°C |
