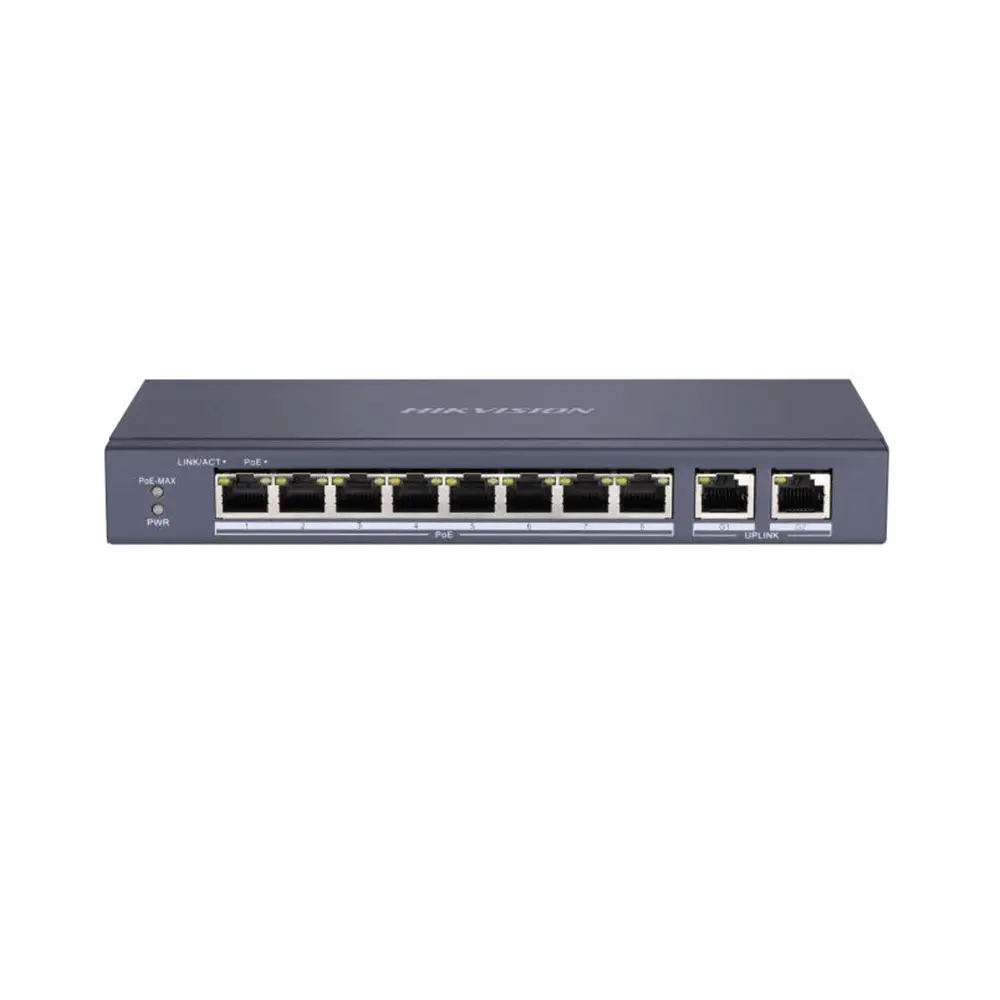

DS-3E0310P-E/M
Hikvision – Unmanaged – Switches • Official ND in Egypt
8×10/100 PoE + 2×Uplink Switch - Unmanaged PoE
- Ports: 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
- PoE power over Ports 1 to 8, compliant with IEEE 802.3af / IEEE 802.3at
- Total PoE budget 80 W, up to 30 W on a single port
- Long-range mode transmits up to 300 m on Ports 1 to 8 — no extra repeater needed
- Switching capacity 5.6 Gbps with a packet forwarding rate of 4.17 Mpps
- Surge protection rated 6 kV on the network ports
- MAC address table 8 K and 4 Mbits packet buffer
- Housing: metal
- Mounting: desk or wall — 217.60 mm × 27.60 mm × 108.50 mm
- Power input 54VDC, 1.6A, maximum consumption 86 W
Tags |
Brand
Hikvision
Ports
8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
Switching Capacity
5.6 Gbps
Ideal For
Surveillance NetworksIP Camera ConnectivityPoE Power
| Brand | Hikvision |
| Ports | 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port |
| PoE Budget | 60W |
| Speed | 10/100 Mbps |
| Switching Capacity | 5.6 Gbps |
| MAC Address Table | 16 K |
| Max Power Consumption | 65 W |
| Dimensions | 217.6 × 27.8 × 103.35 mm |
| Operating Temperature | 0°C to 40°C |
| Power Supply | 48 VDC, 1.35 A |
