DS-3E0318P-E
Hikvision – Unmanaged – Switches • Official ND in Egypt

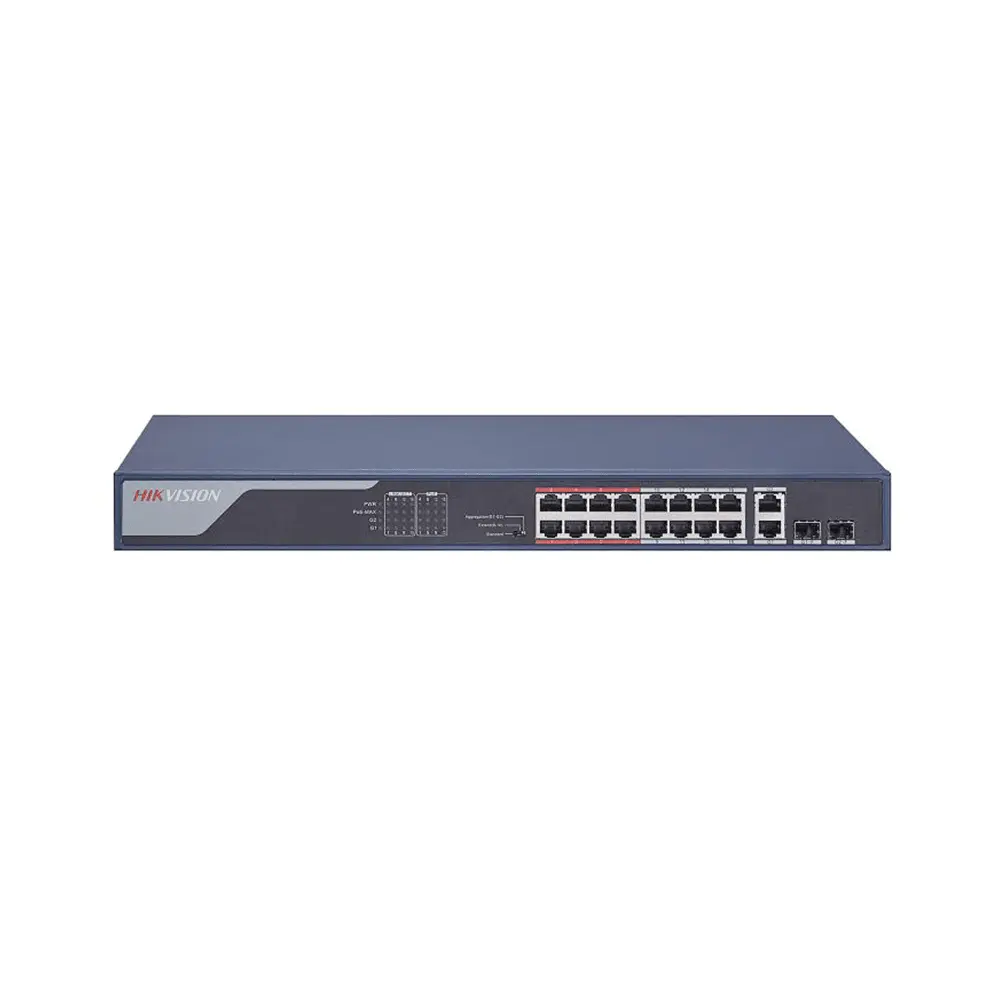

16 Port Fast Ethernet Unmanaged POE Switch
- Ports: 16 × 10/100 Mbps PoE port,2 × Gigabit combo
- PoE power over Ports 1 to 16, compliant with IEEE 802.3af,IEEE 802.3at
- Total PoE budget 225 W, up to 30 W on a single port
- Long-range mode transmits up to 300 m on Ports 9 to 16 — no extra repeater needed
- PoE watchdog on Ports 1 to 16 auto-detects and restarts cameras that stop responding
- Switching capacity 7.20 Gbps with a packet forwarding rate of 5.36 Mpps
- Managed features: port isolation
- Surge protection rated 6 KV on the network ports
- MAC address table 16 K and 4 Mbits packet buffer
- Housing: metal
Tags |
Brand
Hikvision
Ports
18
Switching Capacity
7.2 Gbps
PoE Budget
230W
Power Source
100-240V AC
Ideal For
Surveillance NetworksIP Camera ConnectivityPoE Power
| Brand | Hikvision |
| Ports | 16 × 10/100 Mbps PoE + 2 × Gigabit combo |
| PoE Budget | 225 W total · 30 W/port |
| Speed | 10/100 Mbps |
| Switching Capacity | 7.2 Gbps |
| MAC Address Table | 16 K |
| Max Power Consumption | 250 W |
| Dimensions | 440 × 44 × 220.8 mm |
| Operating Temperature | 0°C to 45°C |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
