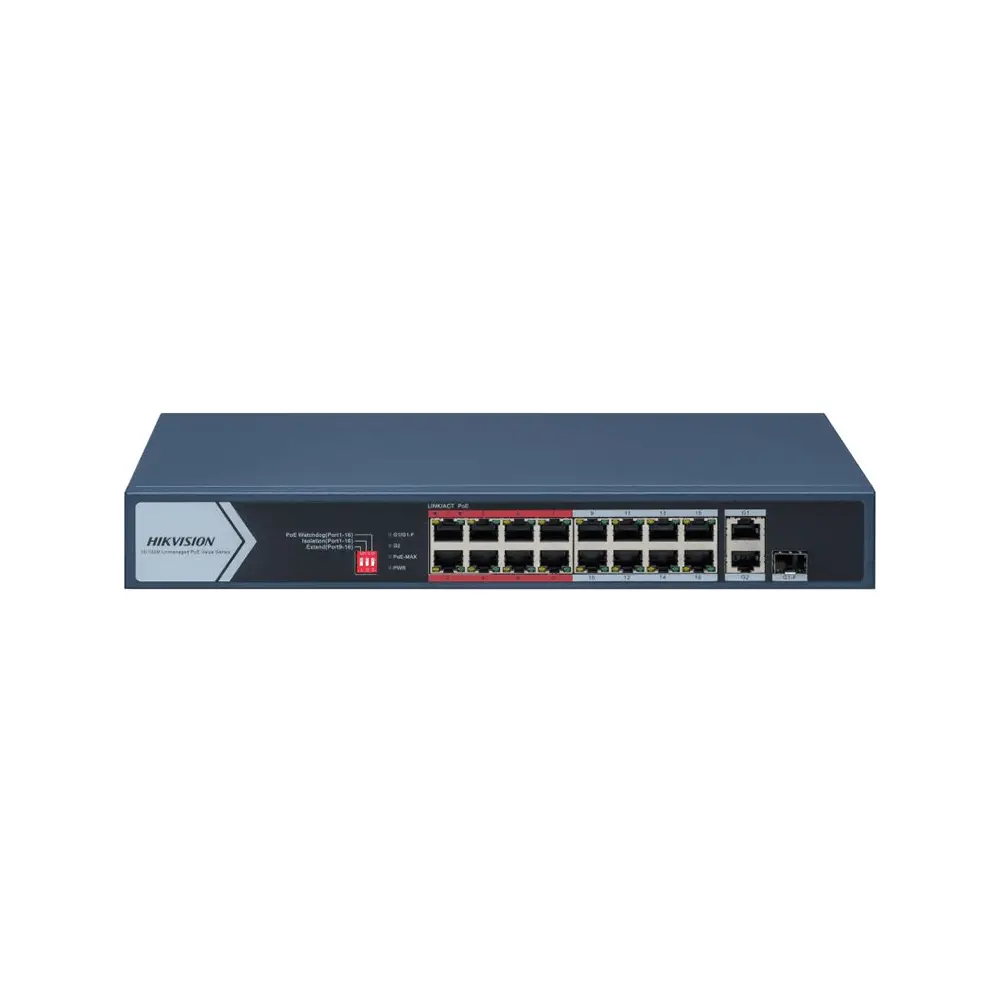

DS-3E0318P-E/M(C)
Hikvision – Unmanaged – Switches • Official ND in Egypt
16 Port Fast Ethernet Unmanaged POE Switch
- Ports: 16 × 10/100 Mbps PoE port,1× Gigabit RJ45 port,1 × Gigabit combo
- PoE power over Ports 1 to 16, compliant with IEEE 802.3af / IEEE 802.3at
- Total PoE budget 130 W, up to 30 W on a single port
- Long-range mode transmits up to 300 m on Ports 9 to 16 — no extra repeater needed
- Switching capacity 7.2 Gbps with a packet forwarding rate of 5.36 Mpps
- Surge protection rated 6 KV on the network ports
- MAC address table 8 K and 4 Mbits packet buffer
- Housing: metal
- Mounting: desk or wall — 335.0 mm × 44.5 mm × 175.8 mm
- Power input 100~240 VAC, 50/60 Hz, Max. 2.5 A, maximum consumption 150 W
Tags |
Brand
Hikvision
Switching Capacity
7.2 Gbps
Speed
Gigabit 1000 Mbps
Ideal For
Surveillance NetworksIP Camera ConnectivityPoE Power
| Brand | Hikvision |
| Ports | 16 × 10/100 Mbps PoE + 1 × Gigabit RJ45 + 1 × Gigabit combo |
| PoE Budget | 130W |
| Speed | 10/100 Mbps (PoE) + Gigabit uplink |
| Switching Capacity | 7.2 Gbps |
| MAC Address Table | 8K |
| Max Power Consumption | 150W |
| Dimensions | 335 × 44.5 × 175.8 mm |
| Operating Temperature | 0°C to 45°C |
| Power Supply | 100–240 VAC, 50/60 Hz |
