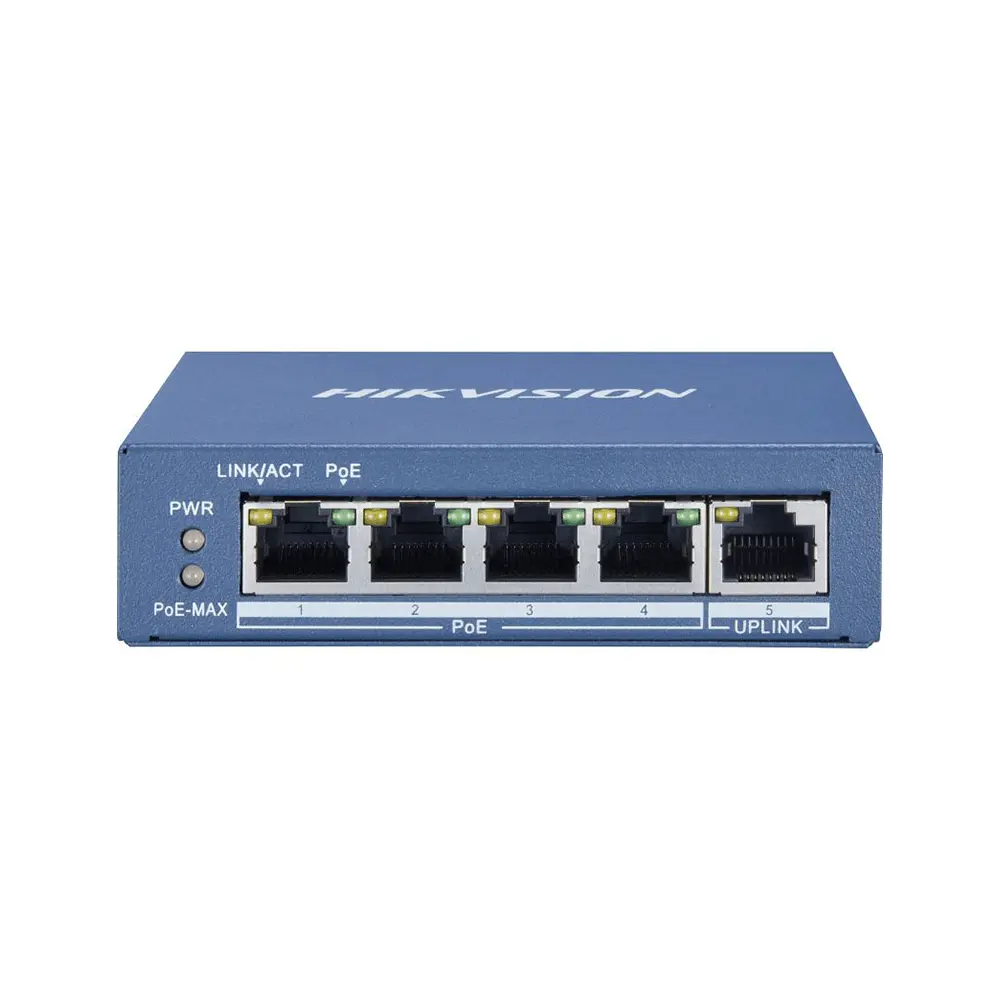

DS-3E0505P-E
Hikvision – Unmanaged – Switches • Official ND in Egypt
4 Port Gigabit Unmanaged POE Switch
- Ports: 4 × Gigabit PoE port,1 × Gigabit RJ45 port
- PoE power over Ports 1 to 4, compliant with IEEE 802.3af,IEEE 802.3at
- Total PoE budget 60 W, up to 30 W on a single port
- Switching capacity 10 Gbps with a packet forwarding rate of 7.44 Mpps
- Surge protection rated 6 KV on the network ports
- MAC address table 2 K and 1 Mbits packet buffer
- Housing: metal, fan-less (silent operation)
- Mounting: desk or wall — 105.0 mm × 27.6 mm × 83.1 mm
- Power input 48 VDC, 1.35 A, maximum consumption 65 W
- Operating temperature 0 °C to 40 °C
Tags |
Brand
Hikvision
PoE Budget
60W
Port Count
4 Gigabit PoE + 1 uplink
Switching Capacity
10 Gbps
Speed
Gigabit 1000 Mbps
MAC Address Table
2K
Max Power Consumption
38W
Dimensions
105 × 27.6 × 83.1 mm
Operating Temperature
0°C to 40°C
Ideal For
InfrastructureCamera PowerNetwork Connectivity
| Brand | Hikvision |
| Ports | 4 × Gigabit PoE + 1 × Gigabit RJ45 |
| PoE Budget | 60W |
| Speed | 10/100/1000 Mbps |
| Switching Capacity | 10 Gbps |
| MAC Address Table | 2K |
| Max Power Consumption | 65 W |
| Dimensions | 105 × 27.6 × 83.1 mm |
| Operating Temperature | -10 °C to 55 °C |
| Power Supply | 48 VDC, 1.35 A |
