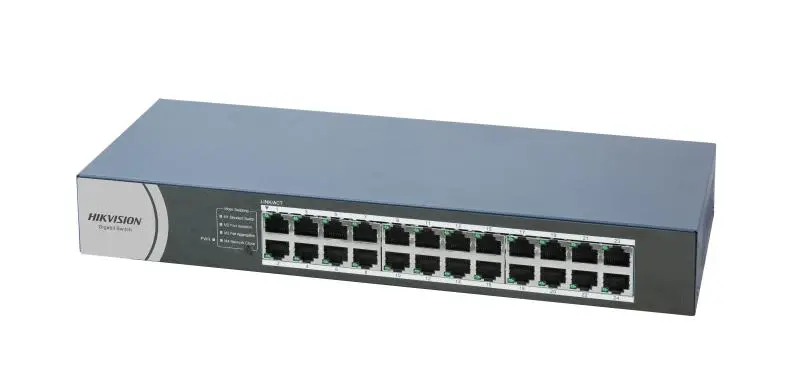

DS-3E0524R-O
Hikvision – SOHO – Switches • Official ND in Egypt
24 Port Gigabit Unmanaged Switch
- Ports: 24 × Gigabit RJ45 port
- Switching capacity 48 Gbps with a packet forwarding rate of 35.71 Mpps
- Surge protection rated 6 KV on the network ports
- MAC address table 8 K and 4.1 Mbits packet buffer
- Housing: metal, fan-less (silent operation)
- Mounting: 19-inch rack — 327.00 mm × 44.00 mm × 118.00 mm
- Power input 100-240 VAC, 50/60 Hz, Max. 0.7 A, maximum consumption 18 W
- Operating temperature 0 °C to 40 °C
- Net weight 0.9 kg
- Operating humidity 5% to 95% (no condensation)
Tags |
Brand
Hikvision
PoE Budget
N/A
Port Count
24 x Gigabit RJ45
Switching Capacity
48 Gbps
Speed
Gigabit 1000 Mbps
MAC Address Table
8K
Max Power Consumption
20W
Dimensions
335 × 44.5 × 175.8 mm
Operating Temperature
0°C to 40°C
Ideal For
InfrastructureCamera PowerNetwork Connectivity
| Brand | Hikvision |
| Ports | 24 x Gigabit RJ45 |
| PoE Budget | N/A |
| Speed | 10/100/1000 Mbps |
| Switching Capacity | 48 Gbps |
| MAC Address Table | 8K |
| Max Power Consumption | 18 W |
| Dimensions | 327 × 44 × 118 mm |
| Operating Temperature | 0°C to 40°C |
| Power Supply | 100–240 VAC, 50/60 Hz, Max. 0.7 A |
