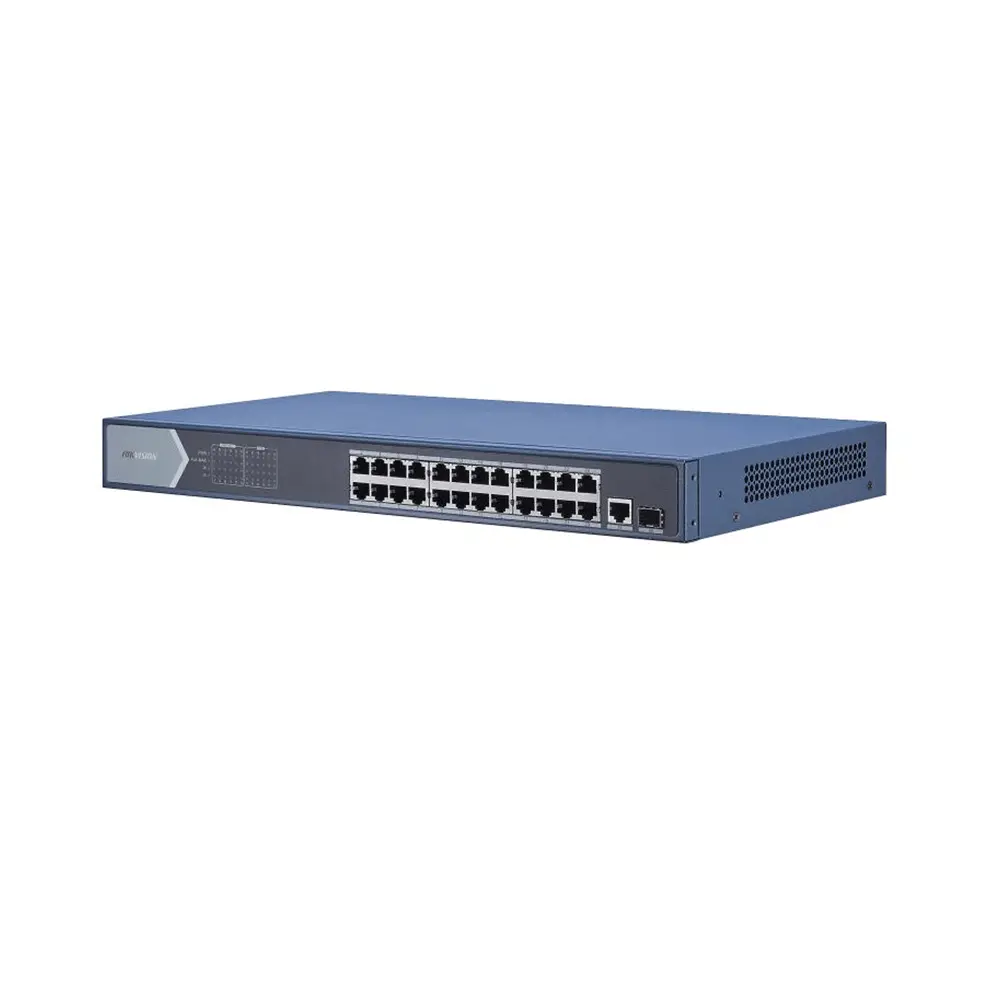

DS-3E0526P-E
Hikvision – Unmanaged – Switches • Official ND in Egypt
24×Gigabit PoE + 2×Uplink Switch - Unmanaged PoE
- Ports: 24 × Gigabit PoE port / 1 × Gigabit RJ45 port / 1 × Gigabit fiber optical port
- PoE power over Ports 1 to 24, compliant with IEEE 802.3af,IEEE 802.3at
- Total PoE budget 370 W, up to 30 W on a single port
- Switching capacity 52 Gbps with a packet forwarding rate of 38.69 Mpps
- Surge protection rated 6 KV on the network ports
- MAC address table 8 K and 4.1 Mbits packet buffer
- Housing: metal
- Mounting: desk or 19-inch rack — 440.0 mm × 44.0 mm × 220.8 mm
- Power input 100~240 VAC, 50/60 Hz, Max. 6.5 A, maximum consumption 400 W
- Operating temperature –10 °C to 55 °C
Tags |
Brand
Hikvision
Switching Capacity
52 Gbps
Power Source
100-240V AC
Ideal For
Surveillance NetworksIP Camera ConnectivityPoE Power
| Brand | Hikvision |
| Ports | 24 Gigabit PoE + 1 RJ45 + 1 SFP |
| PoE Budget | 370 W total · 30 W/port |
| Speed | 10/100/1000 Mbps |
| Switching Capacity | 52 Gbps |
| MAC Address Table | 8K |
| Max Power Consumption | 400W |
| Dimensions | 440 × 44 × 220.8 mm |
| Operating Temperature | -10°C to 55°C |
| Power Supply | 100–240 VAC, 50/60 Hz, Max. 6.5 A |
