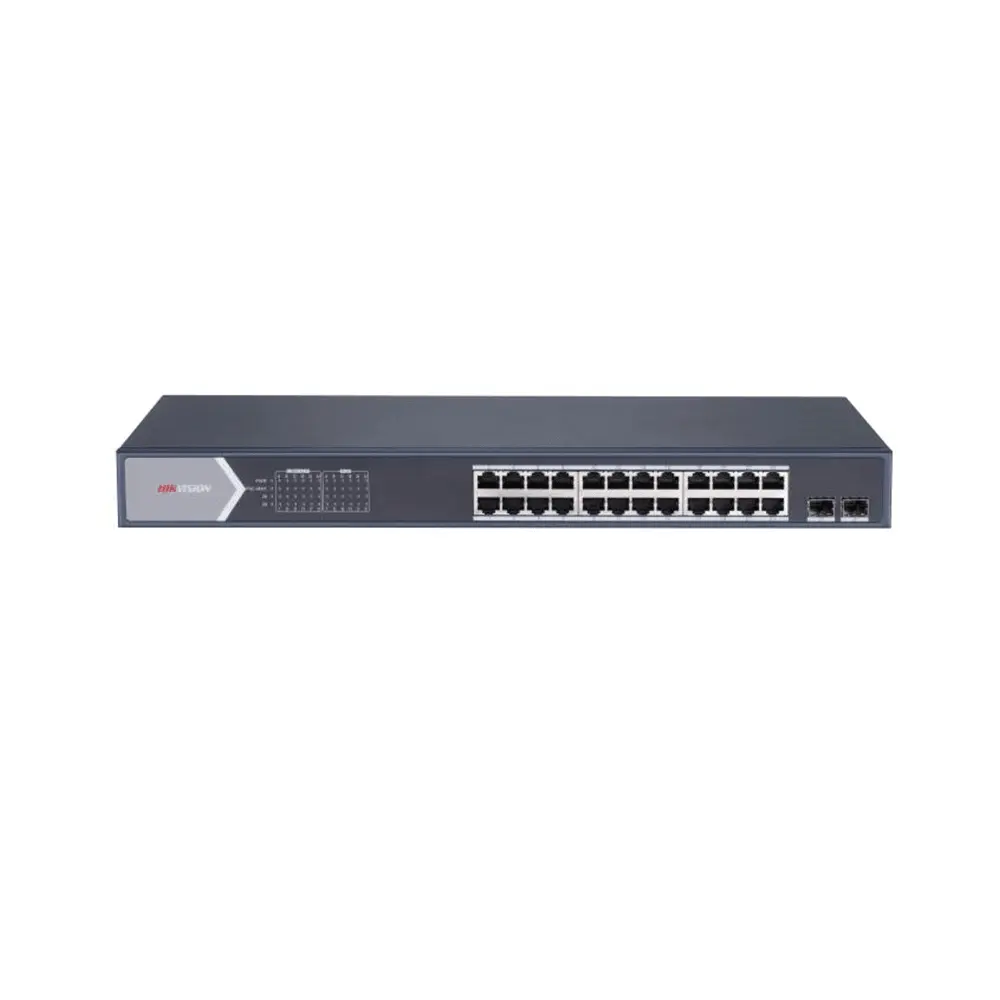

DS-3E0526P-E/M
Hikvision – Unmanaged – Switches • Official ND in Egypt
24 Port Gigabit Unmanaged POE Switch
- Ports: 24 × Gigabit PoE port,2 × Gigabit fiber optical port
- PoE power over Ports 1 to 24, compliant with IEEE 802.3af / IEEE 802.3at /
- Total PoE budget 225 W, up to 30 W on a single port
- Switching capacity 52 Gbps with a packet forwarding rate of 38.69 Mpps
- Surge protection rated 6 KV on the network ports
- MAC address table 8 K and 4.1 Mbits packet buffer
- Housing: metal
- Mounting: 19-inch rack — 440 mm × 44 mm × 220.8 mm
- Power input 100-240 VAC, 50/60 Hz, Max. 4 A / , maximum consumption 250 W
- Operating temperature 0 °C to 45 °C
Tags |
Brand
Hikvision
PoE Budget
370W
Port Count
24 Gigabit PoE + 2 SFP
Switching Capacity
56 Gbps
Speed
Gigabit 1000 Mbps
MAC Address Table
8K
Max Power Consumption
400W
Dimensions
440 × 44 × 220.8 mm
Operating Temperature
0°C to 45°C
Ideal For
InfrastructureCamera PowerNetwork Connectivity
| Brand | Hikvision |
| Ports | 24 Gigabit PoE + 2 SFP |
| PoE Budget | 225 W total · 30 W/port |
| Speed | 10/100/1000 Mbps |
| Switching Capacity | 52 Gbps |
| MAC Address Table | 8K |
| Max Power Consumption | 250 W |
| Dimensions | 440 × 44 × 220.8 mm |
| Operating Temperature | 0°C to 45°C |
| Power Supply | 100–240 VAC, 50/60 Hz, Max. 4 A |
