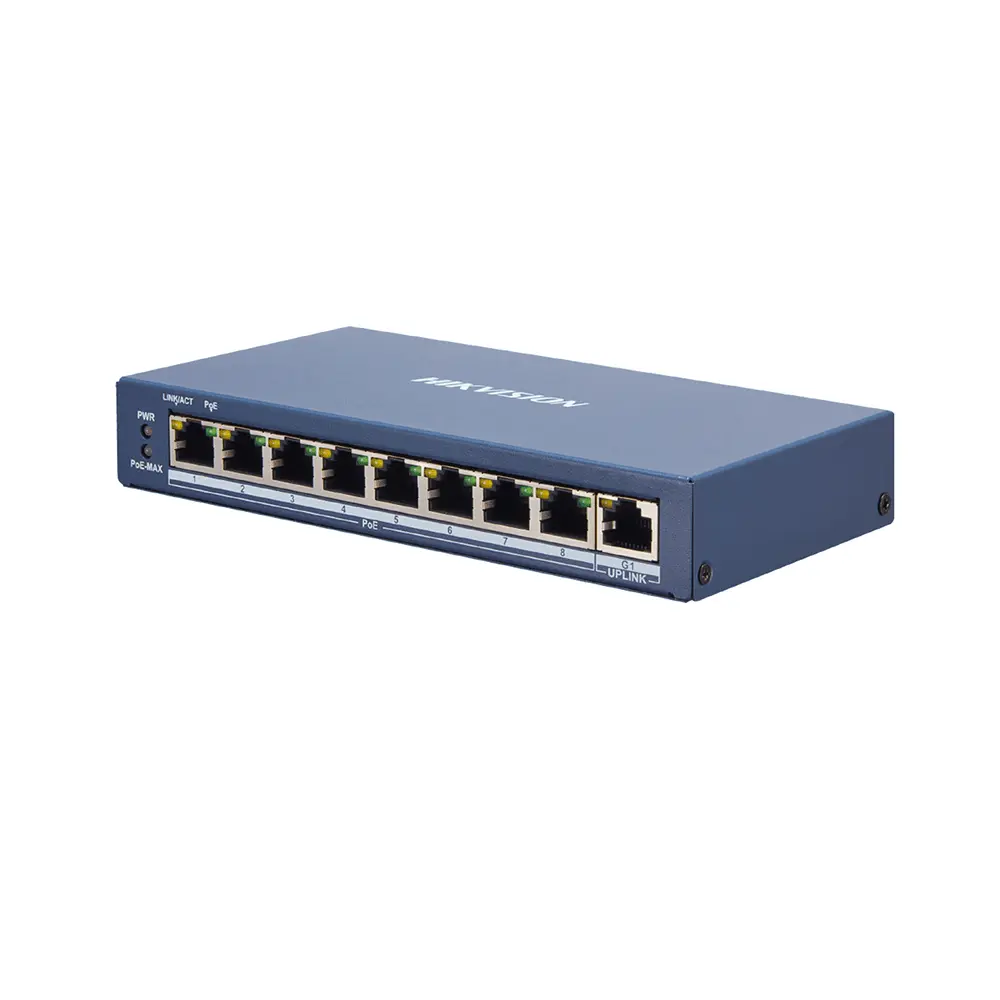

DS-3E1309P-EI/M
Hikvision – Managed – Switches • Official ND in Egypt
8×10/100M PoE + 1×Gigabit RJ45 Switch - Smart Managed
- Ports: 8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port
- PoE power over Ports 1 to 8, compliant with IEEE 802.3af,IEEE 802.3at
- Total PoE budget 60 W, up to 30 W on a single port
- Long-range mode transmits up to 300 m on Ports 1 to 8 — no extra repeater needed
- PoE watchdog on Ports 1 to 8 auto-detects and restarts cameras that stop responding
- Switching capacity 5.6 Gbps for the whole device (3.6 Gbps across the ports) with a packet forwarding rate of 4.17 Mpps (2.68 Mpps on the ports)
- Managed features: VLAN (802.1Q), port isolation, loop prevention
- Surge protection rated 6 kV on the network ports
- Remote monitoring and management through Hik-Partner Pro — port rate, bandwidth use, PoE consumption, topology, alarms and remote reboot
- MAC address table 8 K and 4 Mbits packet buffer
Tags |
Brand
Hikvision
Ports
8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port
Switching Capacity
5.6 Gbps
Ideal For
Surveillance NetworksIP Camera ConnectivityPoE Power
| Brand | Hikvision |
| Ports | 8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port |
| PoE Budget | 60W |
| Speed | 10/100 Mbps |
| Switching Capacity | 5.6 Gbps |
| MAC Address Table | 8 K |
| Max Power Consumption | 65 W |
| Dimensions | 170 × 27.6 × 93.1 mm |
| Operating Temperature | 0°C to 40°C |
| Power Supply | 54 VDC, 1.2 A |
