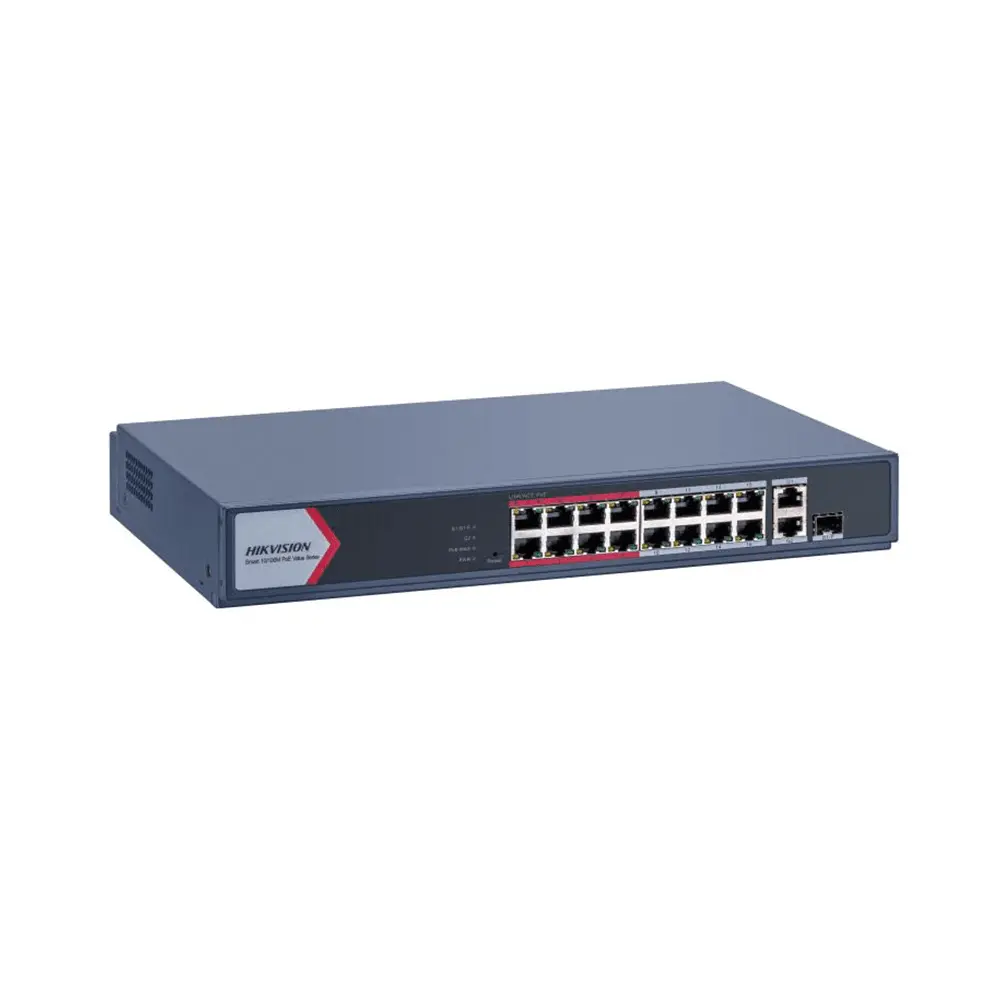

DS-3E1318P-EI/M
Hikvision – Managed – Switches • Official ND in Egypt
16×100 PoE + 2×Gigabit combos Switch - Smart Managed
- Ports: 16 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port,1 × Gigabit combo
- PoE power over Ports 1 to 16, compliant with IEEE 802.3af,IEEE 802.3at
- Total PoE budget 130 W, up to 30 W on a single port
- Long-range mode transmits up to 300 m on Ports 1 to 16 — no extra repeater needed
- PoE watchdog on Ports 1 to 16 auto-detects and restarts cameras that stop responding
- Switching capacity 9.2 Gbps for the whole device (7.2 Gbps across the ports) with a packet forwarding rate of 6.84 Mpps (5.36 Mpps on the ports)
- Managed features: VLAN (802.1Q), port isolation, QoS, loop prevention, link aggregation, DHCP snooping
- Surge protection rated 6 kV on the network ports
- Remote monitoring and management through Hik-Partner Pro — port rate, bandwidth use, PoE consumption, topology, alarms and remote reboot
- MAC address table 16 K and 4 Mbits packet buffer
Tags |
Brand
Hikvision
Switching Capacity
9.2 Gbps
Power Source
100-240V AC
Ideal For
Surveillance NetworksIP Camera ConnectivityPoE Power
| Brand | Hikvision |
| Ports | 16 × 10/100 Mbps PoE + 1 × Gigabit RJ45 + 1 × Gigabit combo |
| PoE Budget | 130W |
| Speed | 10/100 Mbps |
| Switching Capacity | 9.2 Gbps |
| MAC Address Table | 16 K |
| Max Power Consumption | 150 W |
| Dimensions | 440 × 44 × 220.8 mm |
| Operating Temperature | 0°C to 45°C |
| Power Supply | 100–240 VAC, 50/60 Hz, Max. 3 A |
