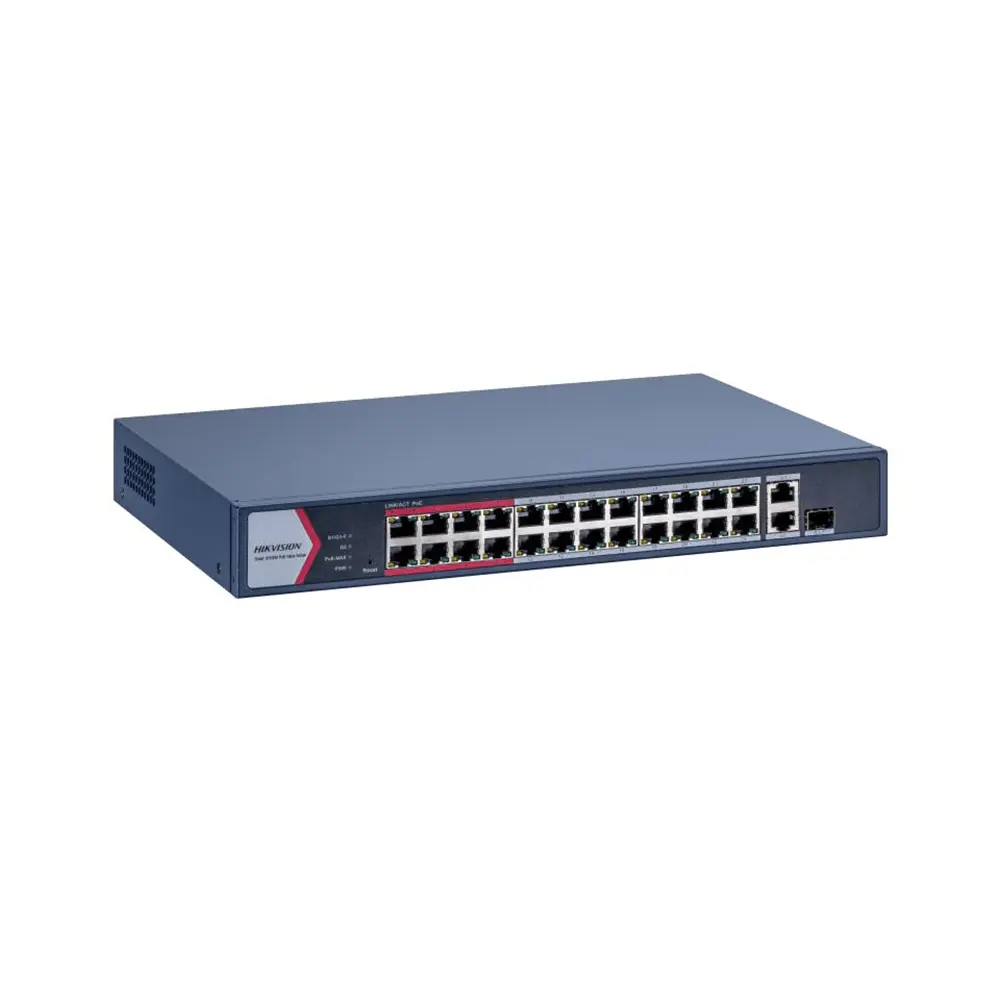

Hikvision DS-3E1326P-EI/M Network Switch (PoE)

24 Port Fast Ethernet Smart POE Switch

Ports: 24 × 10/100 Mbps PoE port,1 × Gigabit combo,1 × Gigabit RJ45 port
PoE power over Ports 1 to 24, compliant with IEEE 802.3af,IEEE 802.3at
Total PoE budget 230 W, up to 30 W on a single port
Long-range mode transmits up to 300 m on Ports 1 to 24 — no extra repeater needed
PoE watchdog on Ports 1 to 24 auto-detects and restarts cameras that stop responding
Switching capacity 14.8 Gbps for the whole device (8.8 Gbps across the ports) with a packet forwarding rate of 11.01 Mpps (6.55 Mpps on the ports)
Managed features: VLAN (802.1Q), port isolation, QoS, loop prevention, link aggregation, DHCP snooping
Surge protection rated 6 kV on the network ports
Remote monitoring and management through Hik-Partner Pro — port rate, bandwidth use, PoE consumption, topology, alarms and remote reboot
MAC address table 16 K and 4 Mbits packet buffer

Brand	Hikvision
Ports	24 × 10/100 Mbps PoE + 1 × Gigabit combo + 1 × Gigabit RJ45
PoE Budget	230 W total · 30 W/port
Speed	10/100 Mbps (PoE) + Gigabit uplink
Switching Capacity	14.8 Gbps
MAC Address Table	16 K
Max Power Consumption	250 W
Dimensions	440 × 44 × 220.8 mm
Operating Temperature	0 °C to 45 °C
Power Supply	100–240 VAC, 50/60 Hz, Max. 4 A

DS-3E1326P-EI/M
