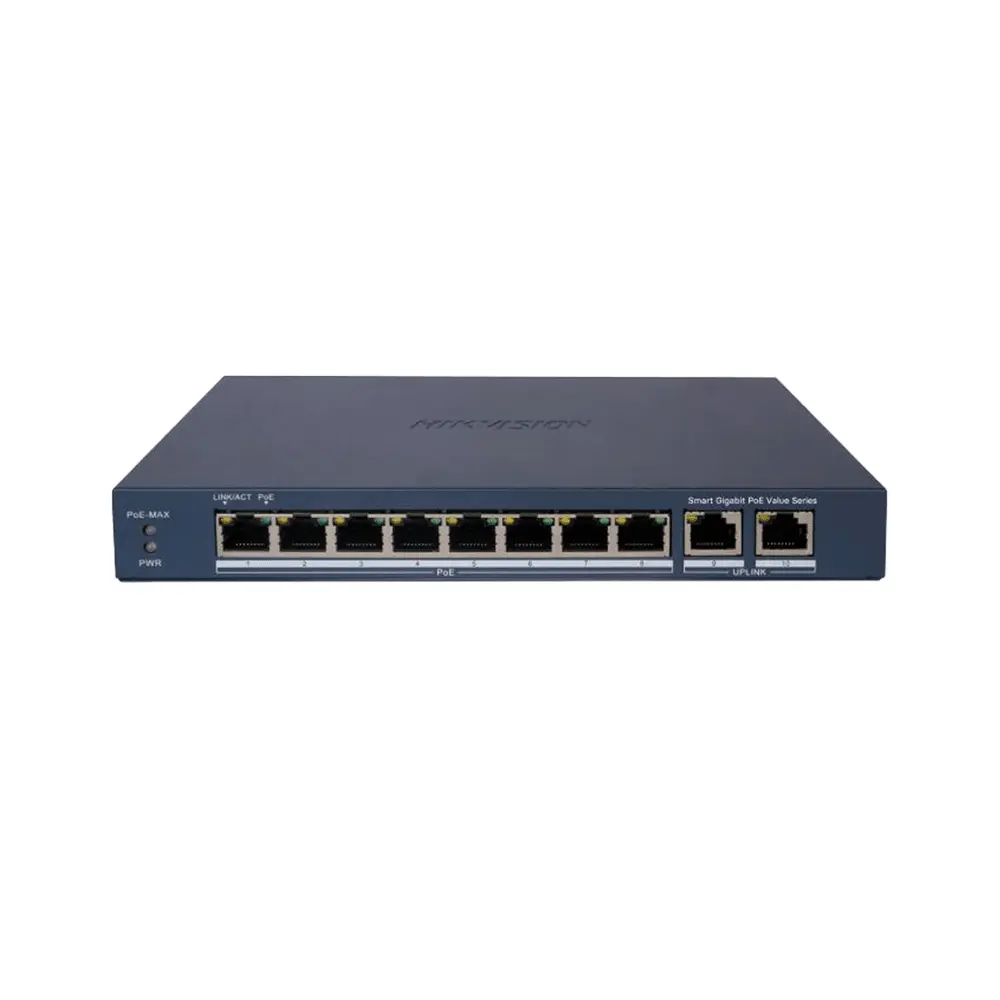

DS-3E1510P-EI/M
Hikvision – Managed – Switches • Official ND in Egypt
8 Port Gigabit Smart POE Switch
- Ports: 8 × Gigabit PoE port,2 × Gigabit RJ45 port
- PoE power over Ports 1 to 8, compliant with IEEE 802.3af,IEEE 802.3at
- Total PoE budget 60 W, up to 30 W on a single port
- Long-range mode transmits up to 300 m on Ports 1 to 8 — no extra repeater needed
- PoE watchdog on Ports 1 to 8 auto-detects and restarts cameras that stop responding
- Switching capacity 20 Gbps with a packet forwarding rate of 14.88 Mpps
- Managed features: VLAN (802.1Q), port isolation, loop prevention, link aggregation
- Surge protection rated 6 kV on the network ports
- Remote monitoring and management through Hik-Partner Pro — port rate, bandwidth use, PoE consumption, topology, alarms and remote reboot
- MAC address table 4 K and 1.5 Mbits packet buffer
Tags |
Brand
Hikvision
Ideal For
InfrastructureCamera PowerNetwork Connectivity
| Brand | Hikvision |
| Ports | 8 × Gigabit PoE + 2 × Gigabit RJ45 |
| PoE Budget | 60 W total · 30 W/port |
| Speed | 10/100/1000 Mbps |
| Switching Capacity | 20 Gbps |
| MAC Address Table | 4 K |
| Max Power Consumption | 65 W |
| Dimensions | 217.6 × 27.6 × 108.5 mm |
| Operating Temperature | 0 °C to 40 °C |
| Power Supply | 54 VDC, 1.2 A |
