New!

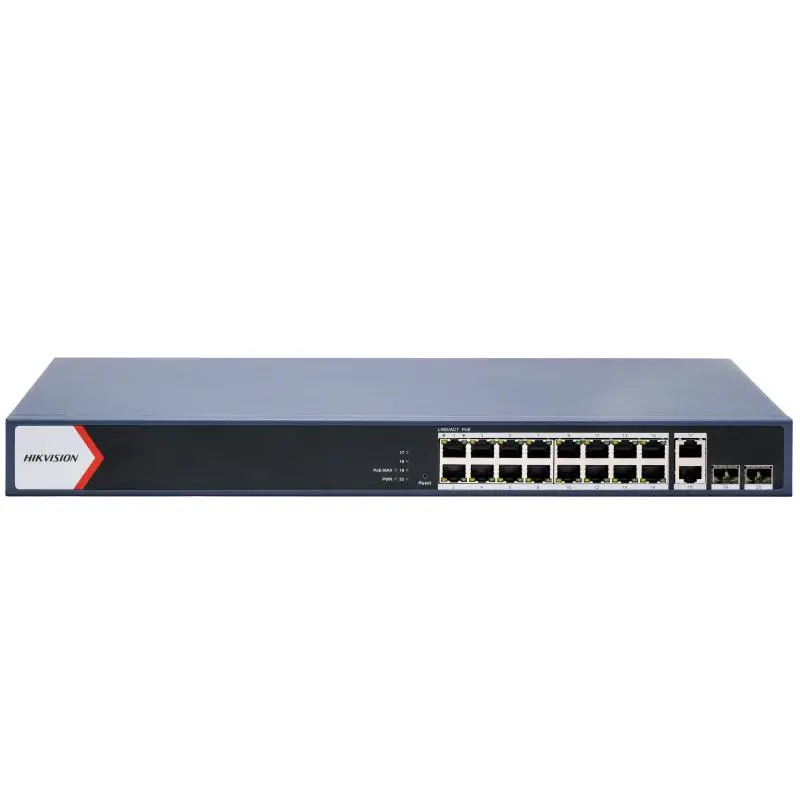

DS-3E1520P-EI/M
Hikvision – Managed – Switches • Official ND in Egypt
16 Port Gigabit Smart POE Switch
- Ports: 16 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port
- PoE power over Ports 1 to 16, compliant with IEEE 802.3af,IEEE 802.3at
- Total PoE budget 125 W, up to 30 W on a single port
- Long-range mode transmits up to 300 m on Ports 1 to 16 — no extra repeater needed
- PoE watchdog on Ports 1 to 16 auto-detects and restarts cameras that stop responding
- Perpetual PoE keeps the cameras powered while the switch itself reboots
- Switching capacity 68 Gbps with a packet forwarding rate of 50.59 Mpps
- Managed features: VLAN (802.1Q), port isolation, QoS, loop prevention, link aggregation, DHCP snooping
- Surge protection rated 6 kV on the network ports
- Remote monitoring and management through Hik-Partner Pro — port rate, bandwidth use, PoE consumption, topology, alarms and remote reboot
Tags |
| Ports | 16 × Gigabit PoE + 2 × Gigabit RJ45 + 2 × Gigabit fiber |
| PoE Budget | 125 W total · 30 W/port |
| Speed | 10/100/1000 Mbps |
| Switching Capacity | 68 Gbps |
| MAC Address Table | 16 K |
| Max Power Consumption | 150 W |
| Dimensions | 440 × 44 × 220.8 mm |
| Operating Temperature | 0 °C to 45 °C |
| Power Supply | 100–240 VAC, 50/60 Hz, Max. 2.5 A |
