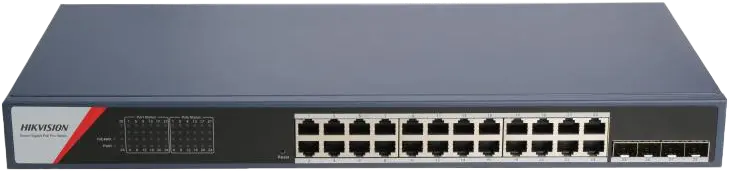

DS-3E1528P-SI-24P4F
Hikvision – Managed – Switches • Official ND in Egypt
24 Port Gigabit Smart POE Switch
- Ports: 24 × Gigabit PoE port,4 × Gigabit fiber optical port
- PoE power over Ports 1 to 24, compliant with IEEE 802.3af,IEEE 802.3at
- Total PoE budget 370 W, up to 30 W on a single port
- PoE watchdog on Ports 1 to 24 auto-detects and restarts cameras that stop responding
- Perpetual PoE keeps the cameras powered while the switch itself reboots
- Switching capacity 56 Gbps with a packet forwarding rate of 41.66 Mpps
- Managed features: VLAN (802.1Q), port isolation, QoS, loop prevention, link aggregation, DHCP snooping, ACL
- Surge protection rated 6 kV on the network ports
- Remote monitoring and management through Hik-Partner Pro — port rate, bandwidth use, PoE consumption, topology, alarms and remote reboot
- MAC address table 8 K and 4.1 Mbits packet buffer
Tags |
Brand
Hikvision
Ports
24 × Gigabit PoE port,4 × Gigabit fiber optical port
Switching Capacity
56 Gbps
Ideal For
Surveillance NetworksIP Camera ConnectivityPoE Power
| Brand | Hikvision |
| Ports | 24 × Gigabit PoE port,4 × Gigabit fiber optical port |
| PoE Budget | 370 W total · 30 W/port |
| Speed | 10/100/1000 Mbps |
| Switching Capacity | 56 Gbps |
| MAC Address Table | 8 K |
| Max Power Consumption | 400 W |
| Dimensions | 440 × 44 × 220.8 mm (W×H×D) |
| Operating Temperature | 0 °C to 45 °C |
| Power Supply | 100–240 VAC, 50/60 Hz, Max. 6.3 A |
