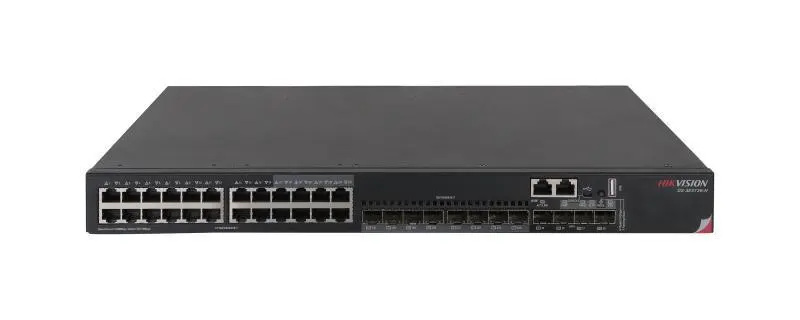

DS-3E3728-H
Hikvision – Enterprise Campus Switches – Switches • Official ND in Egypt
28 Port Core Switch
- Ports: 24×10/100/1000BASE-T ports (including 8×combo interfaces), 4×10G/1G BASE-X SFP+ ports
- Switching capacity 598 Gbps for the whole device (128 Gbps across the ports) with a packet forwarding rate of 444.91 Mpps (95.23 Mpps on the ports)
- Managed features: VLAN, QoS, ACL, static and dynamic routing
- Power input AC：100V～240V AC，50/60Hz DC： -48V～-60V DC
- Operating temperature 0 °C to 45 °C
- Dimensions 440×360×43.6
- Operating humidity 5% to 95% (no condensation)
Tags |
Port Count
28 Ports
Speed
Fast Ethernet
Management
Unmanaged
Installation
Desktop / Rack
Ideal For
InfrastructureCamera PowerNetwork Connectivity
| Brand | Hikvision |
| Ports | 24 × Gigabit RJ45 (8 combo) + 4 × 10G/1G SFP |
| PoE Budget | N/A |
| Speed | 10/100/1000 Mbps + 10G uplink |
| Switching Capacity | 598 Gbps (port: 128 Gbps) |
| Max Power Consumption | Dual AC: 91 W; Dual DC: 95 W |
| Dimensions | 440 × 360 × 43.6 mm (W×D×H) |
| Operating Temperature | 0 °C to 45 °C |
| Power Supply | 100–240 VAC, 50/60 Hz; –48 to –60 VDC |
