DS-3T0506P
Hikvision – Industrial – Switches • Official ND in Egypt

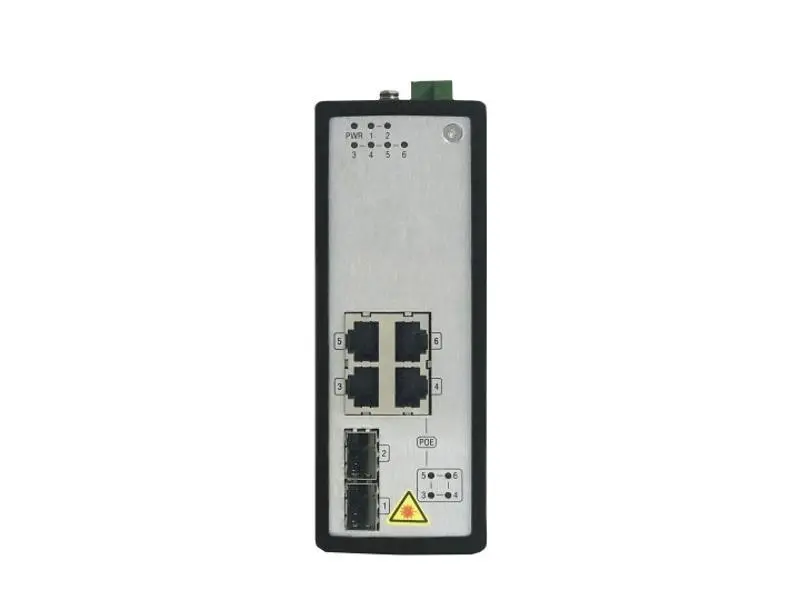

4 Port Gigabit Unmanaged Industrial POE Switch
- Ports: 4 × Gigabit RJ45 port,2 × Gigabit fiber optical port
- PoE power over Ports 3 to 6, compliant with IEEE 802.3af,IEEE 802.3at
- Total PoE budget 120 W, up to 30 W on a single port
- Switching capacity 20 Gbps
- Surge protection rated 6 KV on the network ports
- MAC address table 4 K
- Housing: metal, fan-less (silent operation)
- Operating temperature -40 °C to 75 °C
- Dimensions 52.0 mm × 140.0 mm × 110.0 mm, net weight 0.7 kg
- Operating humidity 5% to 95% (no condensation)
Tags |
Port Count
6 Ports
Speed
Fast Ethernet
Management
Unmanaged
Installation
Desktop / Rack
Ideal For
InfrastructureCamera PowerNetwork Connectivity
| Brand | Hikvision |
| Ports | 4 × Gigabit RJ45 + 2 × Gigabit fiber |
| PoE Budget | 120 W total · 30 W/port |
| Speed | 10/100/1000 Mbps |
| Switching Capacity | 20 Gbps |
| MAC Address Table | 4 K |
| Max Power Consumption | 120 W |
| Dimensions | 52 × 140 × 110 mm |
| Operating Temperature | -40 °C to 75 °C |
| Power Supply | Redundant dual DC power input |
