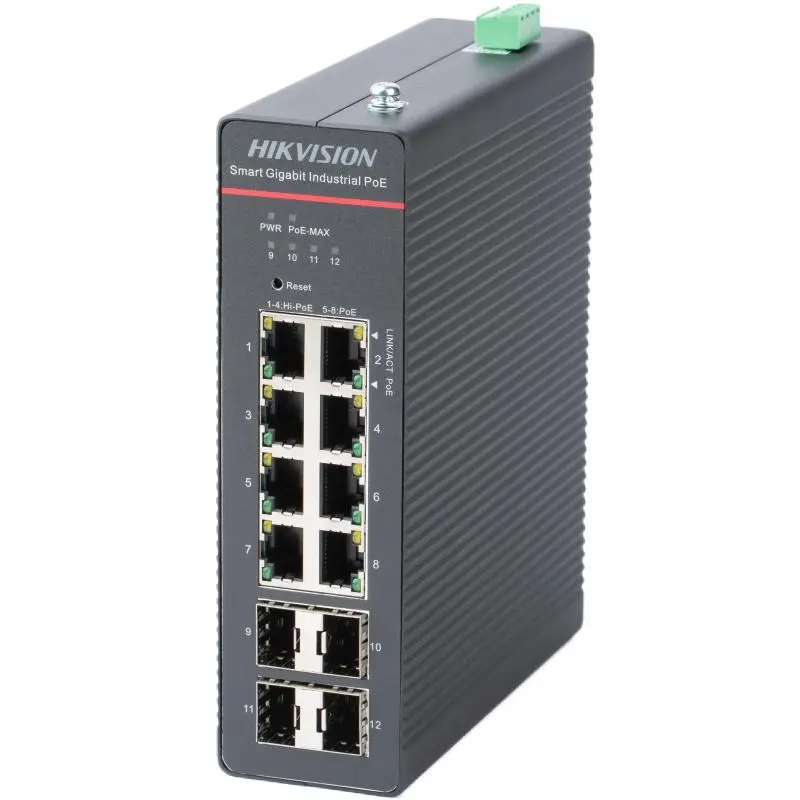

DS-3T1512HP-SI-8P4F
Hikvision – Industrial – Switches • Official ND in Egypt
8 Port Gigabit Smart Managed Industrial POE Switch
- Ports: 8 × Gigabit PoE port,4 × Gigabit fiber optical port
- PoE power over Ports 1 to 4, compliant with Ports 1 to 4: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 5 to 8: IEEE 802.3af, IEEE 802.3at
- Total PoE budget 300 W, up to Ports 1 to 4: 90 W Ports 5 to 8: 30 W on a single port
- Long-range mode transmits up to 300 m on Ports 1 to 8 — no extra repeater needed
- PoE watchdog on Ports 1 to 8 auto-detects and restarts cameras that stop responding
- Switching capacity 56 Gbps for the whole device (24 Gbps across the ports) with a packet forwarding rate of 41.66 Mpps (17.86 Mpps on the ports)
- Managed features: VLAN (802.1Q), port isolation, QoS, loop prevention, link aggregation, DHCP snooping, ACL
- Surge protection rated 6 KV on the network ports
- Remote monitoring and management through Hik-Partner Pro — port rate, bandwidth use, PoE consumption, topology, alarms and remote reboot
- MAC address table 8 K and 4.1 Mbits packet buffer
Brand
Hikvision
Ideal For
Hikvision DevicesProfessional UseOriginal Quality
| Brand | Hikvision |
| Ports | 8 × Gigabit PoE + 4 × Gigabit fiber |
| PoE Budget | 300 W total · 90 W/port |
| Speed | 10/100/1000 Mbps |
| Switching Capacity | 56 Gbps |
| MAC Address Table | 8 K |
| Max Power Consumption | 307 W |
| Dimensions | 155 × 46 × 130 mm |
| Operating Temperature | -40 °C to 75 °C |
| Power Supply | 48–57 VDC, 7.5 A |
