DS-3E0105D-O
Hikvision – SOHO – Switches • Official ND in Egypt

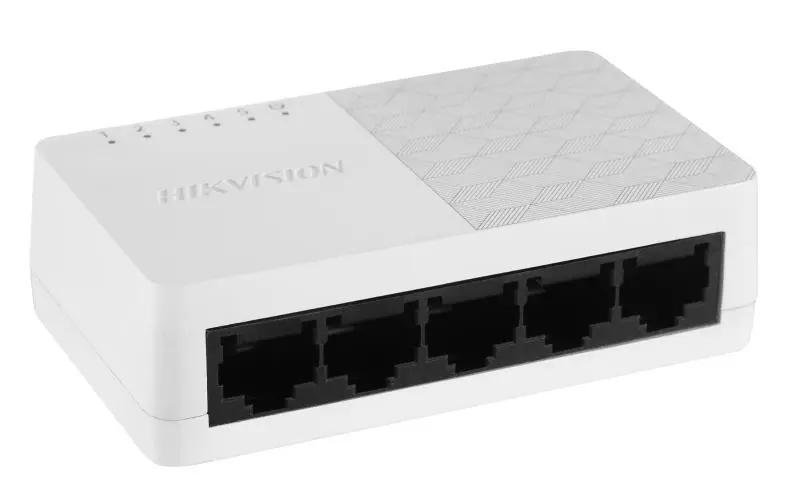

5-Port Fast Ethernet Plastic Switch
- Ports: 5 × 10/100 Mbps RJ45 port
- Switching capacity 1 Gbps with a packet forwarding rate of 0.74 Mpps
- Surge protection rated 2 KV on the network ports
- MAC address table 2 K and 768Kbits packet buffer
- Mounting: desk — 83.00 mm × 22.00 mm × 52.00 mm
- Power input 5 VDC, 0.6 A, maximum consumption 3 W
- Operating temperature 0 °C to 40 °C
- Net weight 0.093 kg
- Operating humidity 5% to 95% (no condensation)
Tags |
Brand
Hikvision
PoE Budget
N/A
Port Count
5 x 10/100 Mbps RJ45
Switching Capacity
1.0 Gbps
Speed
10/100 Mbps
MAC Address Table
2K
Max Power Consumption
3W
Dimensions
83 × 22 × 52 mm
Operating Temperature
0°C to 40°C
Ideal For
InfrastructureCamera PowerNetwork Connectivity
| Brand | Hikvision |
| Ports | 5 x 10/100 Mbps RJ45 |
| PoE Budget | N/A |
| Speed | 10/100 Mbps |
| Switching Capacity | 1.0 Gbps |
| MAC Address Table | 2K |
| Max Power Consumption | 3W |
| Dimensions | 83 × 22 × 52 mm |
| Operating Temperature | 0°C to 40°C |
| Power Supply | 5 VDC, 0.6 A |
DS-3E0105D-O.pdf
Download
