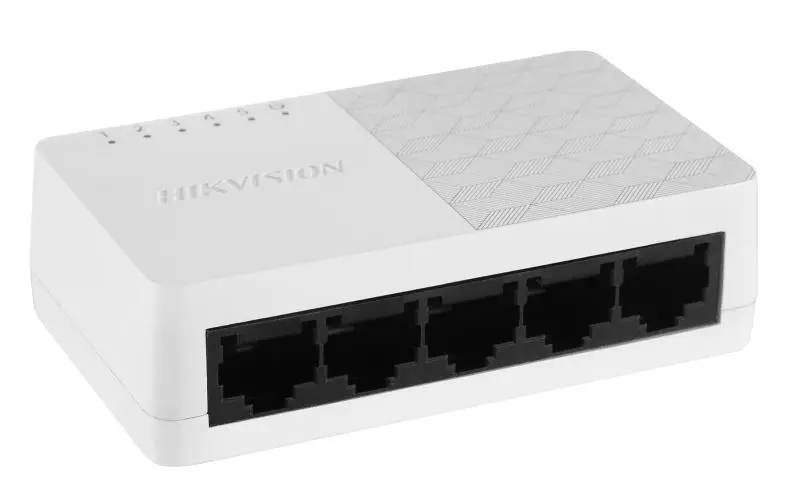

DS-3E0505D-O
Hikvision – SOHO – Switches • Official ND in Egypt
5-Port Gigabit Plastic Switch
- Ports: 5 × Gigabit RJ45 port
- Switching capacity 10 Gbps with a packet forwarding rate of 7.44 Mpps
- Surge protection rated 2 KV on the network ports
- MAC address table 2 K and 1 Mbits packet buffer
- Mounting: desk — 87.00 mm × 25.00 mm × 51.00 mm
- Power input 5 VDC, 0.6 A, maximum consumption 3 W
- Operating temperature 0 °C to 40 °C
- Net weight 0.059 kg
- Operating humidity 5% to 95% (no condensation)
Tags |
Brand
Hikvision
PoE Budget
N/A
Port Count
5 x Gigabit RJ45
Switching Capacity
10 Gbps
Speed
Gigabit 1000 Mbps
MAC Address Table
2K
Max Power Consumption
3W
Dimensions
87 × 25 × 51 mm
Operating Temperature
0°C to 40°C
Ideal For
InfrastructureCamera PowerNetwork Connectivity
| Brand | Hikvision |
| Ports | 5 x Gigabit RJ45 |
| PoE Budget | N/A |
| Speed | 10/100/1000 Mbps |
| Switching Capacity | 10 Gbps |
| MAC Address Table | 2K |
| Max Power Consumption | 3W |
| Dimensions | 87 × 25 × 51 mm |
| Operating Temperature | 0°C to 40°C |
| Power Supply | 5 VDC, 0.6 A |
DS-3E0505D-O.pdf
Download
