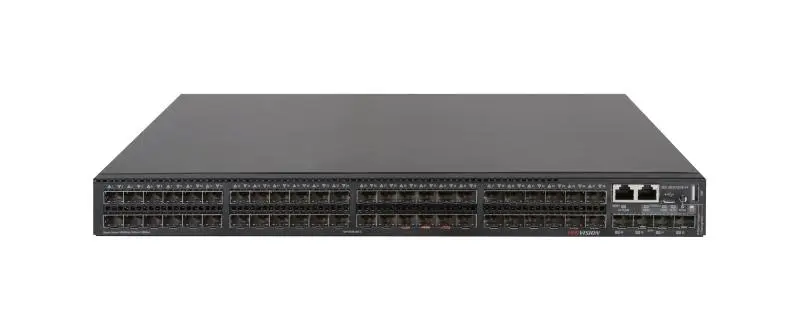

DS-3E3752F-H
Hikvision – Enterprise Campus Switches – Switches • Official ND in Egypt
48 Port Fiber Core Switch
- Ports: 48 × Gigabit fiber optical port,4 × 10G fiber optical port
- Switching capacity 336 Gbps for the whole device (216 Gbps across the ports) with a packet forwarding rate of 252 Mpps (160.7 Mpps on the ports)
- Managed features: VLAN, QoS, ACL
- MAC address table 64 K and 4 Mbits packet buffer
- Housing: metal
- Mounting: 19-inch rack — 440.00 mm × 360.00 mm × 43.60 mm
- Power input AC：100 V～240 V AC，50/60 Hz, maximum consumption Single AC input: 130 W Dual AC inputs: 134 W Single DC input: 132 W Dual DC inputs: 140 W
- Operating temperature -5 °C to 45 °C
- Net weight 6.70 kg
- Operating humidity 10% to 95% (no condensation)
Tags |
Speed
Fast Ethernet
Management
Unmanaged
Installation
Desktop / Rack
Ideal For
InfrastructureCamera PowerNetwork Connectivity
| Ports | 48 × Gigabit fiber + 4 × 10G fiber |
| PoE Budget | N/A |
| Speed | 10/100/1000 Mbps + 10G uplink |
| Switching Capacity | 336 Gbps (port: 216 Gbps) |
| MAC Address Table | 64 K |
| Max Power Consumption | Single AC: 130 W; Dual AC: 134 W; Single DC: 132 W; Dual DC: 140 W |
| Dimensions | 440 × 360 × 43.6 mm |
| Operating Temperature | -5 °C to 45 °C |
| Power Supply | 100–240 VAC, 50/60 Hz |
