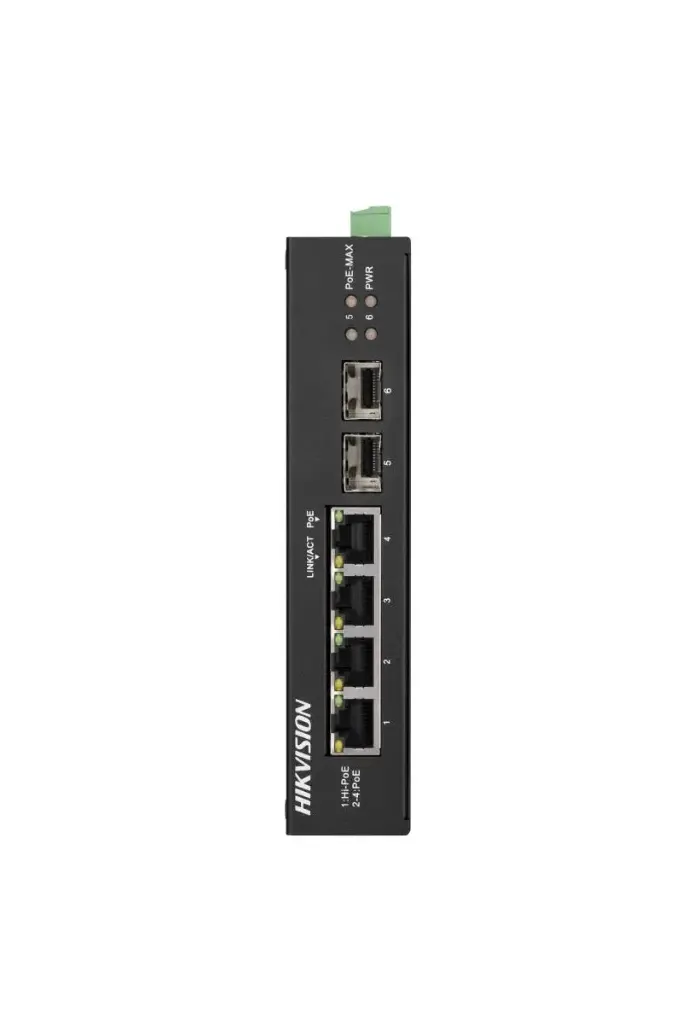

DS-3T0506HP-E/HS
Hikvision – Industrial – Switches • Official ND in Egypt
4 Port Gigabit Unmanaged Harsh POE Switch
- Ports: 4 × Gigabit PoE port,2 × Gigabit fiber optical port
- PoE power over Ports 2 to 4, compliant with IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
- Total PoE budget 65 W, up to Port 1: 60 W Ports 2 to 4: 30 W on a single port
- Long-range mode transmits up to 300 m on Ports 3 to 4 — no extra repeater needed
- PoE watchdog on Ports 1 to 4 auto-detects and restarts cameras that stop responding
- Switching capacity 12 Gbps with a packet forwarding rate of 8.928 Mpps
- Managed features: port isolation
- Surge protection rated 6 KV on the network ports
- MAC address table 2 K and 1 Mbits packet buffer
- Housing: metal, fan-less (silent operation)
Tags |
Port Count
6 Ports
Speed
Fast Ethernet
Management
Unmanaged
Installation
Desktop / Rack
Ideal For
InfrastructureCamera PowerNetwork Connectivity
| Ports | 4 × Gigabit PoE + 2 × Gigabit fiber |
| PoE Budget | 60 W total (Port 1: 60 W · Ports 2-4: 30 W) |
| Speed | 10/100/1000 Mbps |
| Switching Capacity | 12 Gbps |
| MAC Address Table | 2 K |
| Max Power Consumption | 65 W |
| Dimensions | 158 × 101.2 × 31.6 mm |
| Operating Temperature | -30 °C to 65 °C |
| Power Supply | 57 VDC, 1.35 A |
